2SC2240 Datasheet - SEMTECH

2SC2240 NPN Silicon Epitaxial Planar Transistor

2SC2240 NPN Silicon Epitaxial Planar Transistor for low noise audio amplifier applications. The transistor is subdivided into two groups, G and L according to its DC current gain On special request, these transistors can be manufactured in different pin configurations. 1. Emitter 2. Collector 3. Base TO-92 Plastic Package Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Base Current Power Dissipation Juncti.

2SC2240-SEMTECH.pdf

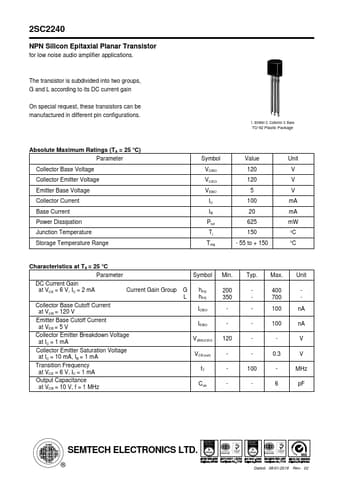

Preview of 2SC2240 PDF
2SC2240 Datasheet Preview Page 2

Datasheet Details

Part number:

2SC2240

Manufacturer:

SEMTECH

File Size:

252.93 KB

Description:

Npn silicon epitaxial planar transistor.
