2SC2458 NPN Silicon Transistor

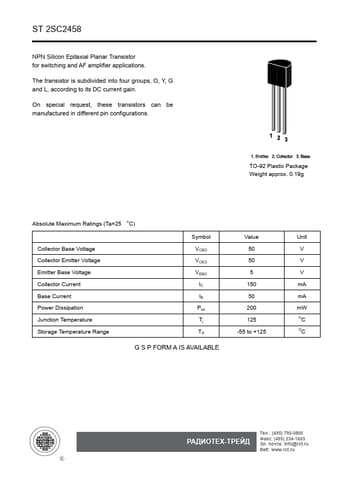

📥 Download Datasheet  Datasheet Preview Page 1

Description

ST 2SC2458 NPN Silicon Epitaxial Planar Transistor for switching and AF amplifier applications.The transistor is subdivided into four groups, O, Y, G.

📥 Download Datasheet

Preview of 2SC2458 PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
2SC2458
Manufacturer
SEMTECH
File Size
399.15 KB
Datasheet
2SC2458-SEMTECH.pdf
Description
NPN Silicon Transistor

Applications

* The transistor is subdivided into four groups, O, Y, G and L, according to its DC current gain. On special request, these transistors can be manufactured in different pin configurations. TO-92 Plastic Package Weight approx. 0.19g Absolute Maximum Ratings (Ta=25 oC) Collector Base Voltage Collecto
