2SC2456 - Silicon NPN Transistor

Datasheet Summary

Features

  • . High Voltage : VCE0=300V . Recommended for Chroma Output and Horizontal Driver.

📥 Download Datasheet

Datasheet preview – 2SC2456

Datasheet Details

Part number 2SC2456
Manufacturer Toshiba
File Size 126.21 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC2456 Datasheet
Additional preview pages of the 2SC2456 datasheet.

📁 Similar Datasheet

  • 2SC245 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC245 - NPN Transistor (INCHANGE)
  • 2SC2458 - Silicon NPN Transistor (Toshiba Semiconductor)
  • 2SC2458 - NPN Transistor (JCET)
  • 2SC2458 - NPN Silicon Transistor (SEMTECH)
  • 2SC2458 - NPN EPITAXIAL SILICON TRANSISTOR (FGX)
  • 2SC2458 - NPN Silicon Transistor (Bluecolour)
  • 2SC2458L - Silicon NPN Transistor (Toshiba Semiconductor)
  • 2SC2459 - Silicon NPN Transistor (Toshiba Semiconductor)
  • 2SC2404 - Silicon NPN Transistor (Panasonic Semiconductor)
Other Datasheets by Toshiba

Full PDF Text Transcription

Click to expand full text

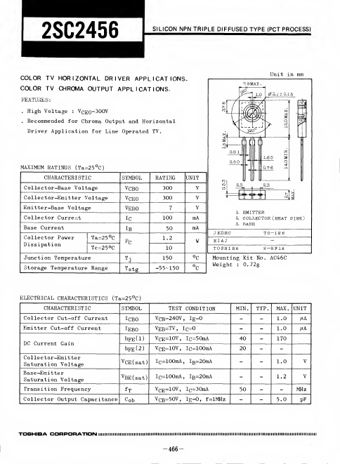

SILICON NPN TRIPLE DIFFUSED TYPE (PCT PROCESS) COLOR TV HORIZONTAL DRIVER APPLICATIONSCOLOR TV CHROMA OUTPUT APPLICATIONS. FEATURES: . High Voltage : VCE0=300V . Recommended for Chroma Output and Horizontal Driver Application for Line Operated TV. Unit in mm MAXIMUM RATINGS (Ta=25°C; CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Collector Power Dissipation Ta=25°C Tc=25°C Junction Temperature Storage Temperature Range SYMBOL VCBO VCEO VEBO ic IB PC -stg RATING 300 300 UNIT 100 mA 50 mA 1.2 10 150 -55-150 1. EMITTER 2. COLLECTOR (HEAT SINK" a BASE JEDEC To-iae TOSHI BA Mounting Kit No. AC46C Weight : 0.
