2SC245 - SILICON POWER TRANSISTOR

Datasheet Summary

Description

With TO-3 package Wide area of safe operation APPLICATIONS

Absolute maximum ratings(Ta=?

SavantIC

📥 Download Datasheet

Datasheet Details

Part number	2SC245
Manufacturer	SavantIC
File Size	186.63 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SC245 Datasheet
Additional preview pages of the 2SC245 datasheet.

📁 Similar Datasheet

2SC245 - NPN Transistor (INCHANGE)
2SC2456 - Silicon NPN Transistor (Toshiba)
2SC2458 - Silicon NPN Transistor (Toshiba Semiconductor)
2SC2458 - NPN Transistor (JCET)
2SC2458 - NPN Silicon Transistor (SEMTECH)
2SC2458 - NPN EPITAXIAL SILICON TRANSISTOR (FGX)
2SC2458 - NPN Silicon Transistor (Bluecolour)
2SC2458L - Silicon NPN Transistor (Toshiba Semiconductor)
2SC2459 - Silicon NPN Transistor (Toshiba Semiconductor)
2SC2404 - Silicon NPN Transistor (Panasonic Semiconductor)

Other Datasheets by SavantIC

2SC2429 - SILICON POWER TRANSISTOR
2SC2437 - SILICON POWER TRANSISTOR
2SC2438 - SILICON POWER TRANSISTOR
2SC2440 - SILICON POWER TRANSISTOR
2SC2460 - SILICON POWER TRANSISTOR
2SC2485 - SILICON POWER TRANSISTOR
2SC2486 - SILICON POWER TRANSISTOR
2SC2497 - SILICON POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text

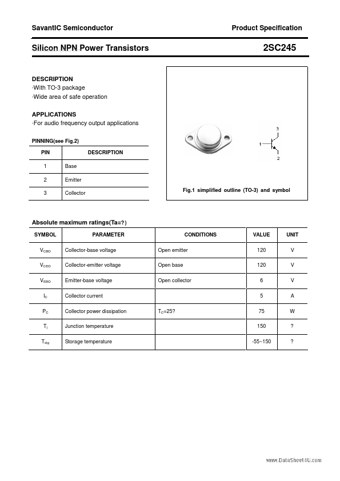

SavantIC Semiconductor Product Specification Silicon NPN Power Transistors www.DataSheet4U.com 2SC245 DESCRIPTION ·With TO-3 package ·Wide area of safe operation APPLICATIONS ·For audio frequency output applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta=? ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature TC=25? CONDITIONS Open emitter Open base Open collector VALUE 120 120 6 5 75 150 -55~150 UNIT V V V A W ? ? SavantIC Semiconductor Product Specification Silicon NPN Power Transistors www.DataSheet4U.
