2SC2481 - Silicon NPN Transistor

Datasheet Summary

Features

  • . Large Collector Current and Collector Power Dissipation Capability. . Recommended for Vert. Deflection Output & Sound Output.

📥 Download Datasheet

Datasheet preview – 2SC2481

Datasheet Details

Part number 2SC2481
Manufacturer Toshiba
File Size 123.72 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC2481 Datasheet
Additional preview pages of the 2SC2481 datasheet.

📁 Similar Datasheet

  • 2SC2481 - Power Transistor (Inchange Semiconductor)
  • 2SC2480 - Silicon NPN Transistor (Panasonic Semiconductor)
  • 2SC2482 - NPN Transistor (Toshiba Semiconductor)
  • 2SC2482 - NPN Transistor (LGE)
  • 2SC2482 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC2482 - NPN Transistor (INCHANGE)
  • 2SC2482 - NPN Transistor (UTC)
  • 2SC2482 - NPN Epitaxial Silicon Transistor (MCC)
  • 2SC2482-O - NPN Epitaxial Silicon Transistor (MCC)
  • 2SC2482-Y - NPN Epitaxial Silicon Transistor (MCC)
Other Datasheets by Toshiba

Full PDF Text Transcription

Click to expand full text

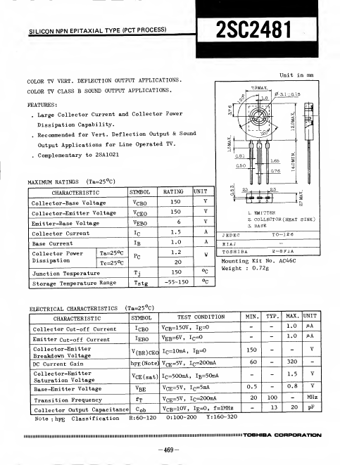

: SILICON NPN EPITAXIAL TYPE (PCT PROCESS) 2SC2481 COLOR TV VERT. DEFLECTION OUTPUT APPLICATIONS. COLOR TV CLASS B SOUND OUTPUT APPLICATIONS. FEATURES . Large Collector Current and Collector Power Dissipation Capability. . Recommended for Vert. Deflection Output & Sound Output Applications for Line Operated TV. . Complementary to 2SA1021 7.9MAX. Unit in mm 3.1-0.15 MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC SYMBOL Collector-Base Voltage Collector-Emitter Voltage vCBO vCEO Emitter-Base Voltage VEBO Collector Current Base Current IB Collector Power Dissipation Ta=25°C Tc=25°C PC Junction Temperature Storage Temperature Range Tstg RATING 150 150 UNIT 1.5 1.0 1.2 20 150 -55-150 °C J ED EC 1. EMITTER 2. COLLECTOR (HEAT SINK) 3.
