2SD882S-Q, 2SD882S-E Datasheet - SEMTECH

2SD882S-E_SEMTECH.pdf

This datasheet PDF includes multiple part numbers: 2SD882S-Q, 2SD882S-E. Please refer to the document for exact specifications by model.

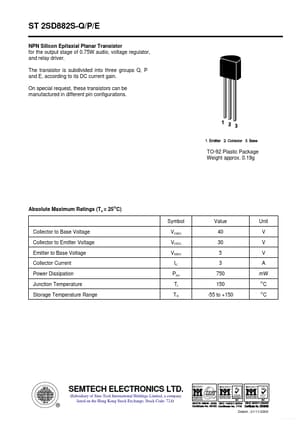

2SD882S-Q Datasheet Preview Page 2

Datasheet Details

Part number:

2SD882S-Q, 2SD882S-E

Manufacturer:

SEMTECH

File Size:

147.18 KB

Description:

Npn transistor.

Note:

This datasheet PDF includes multiple part numbers: 2SD882S-Q, 2SD882S-E.
Please refer to the document for exact specifications by model.

2SD882S-Q, 2SD882S-E, NPN Transistor

ST 2SD882S-Q/P/E NPN Silicon Epitaxial Planar Transistor for the output stage of 0.75W audio, voltage regulator, and relay driver.

The transistor is subdivided into three groups Q, P and E, according to its DC current gain.

On special request, these transistors can be manufactured in different pin configurations.

TO-92 Plastic Package Weight approx.

0.19g Absolute Maximum Ratings (Ta = 25OC) Symbol Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current
