2V7BS
SEMTECH
340.63 KB

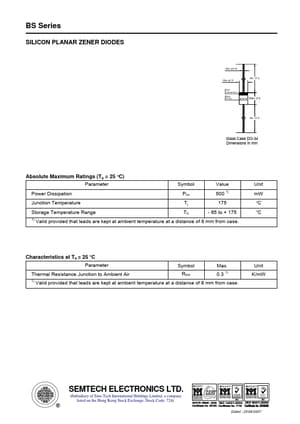

Silicon planar zener diodes.
BS Series
SILICON PLANAR ZENER DIODES
Max. 0.45
Max. 1.9
Min. 27.5
Black Cathode Band
Black Part No.
XXX Max. 2.9
Min. 27.5
Glass Case DO-34 D.
