2V7BSB, 2V7BS Datasheet - SEMTECH

2V7BSB SILICON PLANAR ZENER DIODES

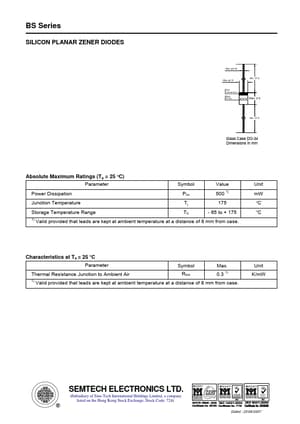

BS Series SILICON PLANAR ZENER DIODES Max. 0.45 Max. 1.9 Min. 27.5 Black Cathode Band Black Part No. XXX Max. 2.9 Min. 27.5 Glass Case DO-34 Dimensions in mm Absolute Maximum Ratings (Ta = 25 OC) Parameter Symbol Value Power Dissipation Ptot 500 1) Junction Temperature Tj 175 Storage Temperature Range TS - 65 to + 175 1) Valid provided that leads are kept at ambient temperature at a distance of 8 mm from case. Unit mW OC OC Characteristics at Ta = 25 OC Parameter Symbol Ma.

2V7BS-SEMTECH.pdf

This datasheet PDF includes multiple part numbers: 2V7BSB, 2V7BS. Please refer to the document for exact specifications by model.
2V7BSB Datasheet Preview Page 2 2V7BSB Datasheet Preview Page 3

Datasheet Details

Part number:

2V7BSB, 2V7BS

Manufacturer:

SEMTECH

File Size:

340.63 KB

Description:

Silicon planar zener diodes.

Note:

This datasheet PDF includes multiple part numbers: 2V7BSB, 2V7BS.
Please refer to the document for exact specifications by model.
