* Halogen-free According to IEC 61249-2-21 Definition
* Low Threshold: 2 V (typ.)
* Low Input Capacitance: 25 pF
* Fast Switching Speed: 25 ns
* Low Input and Output Leakage
* TrenchFET® Power MOSFET
* 1200V ESD Protection
* Compliant t
2V7002KT1G Datasheet (300.02 KB)
2V7002KT1G
VBsemi
300.02 KB
N-channel mosfet.
2V7002KT1G
www.VBsemi.com

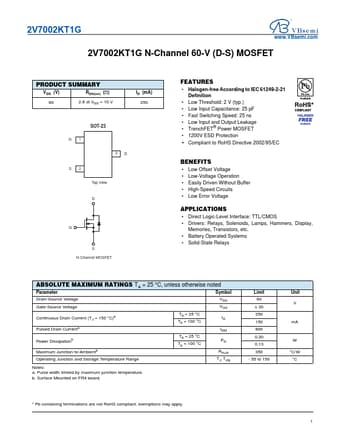

2V7002KT1G N-Channel 60-V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
60
2.8 at VGS = 10 V
ID (mA) 250
SOT-23 .
