BY133G - GLASS PASSIVATED JUNCTION RECTIFIER

Datasheet Summary

Features

  • Low forward voltage drop.
  • High Surge current capability Mechanical Data.
  • Case: Molded plastic, DO-41.
  • Lead: Axial leads, solderable per MIL-STD-202, method 208 guaranteed.
  • Polarity: Color band denotes cathode end.
  • Mounting Position: Any DO-41 0.7-0.9 2-2.7 Min 25.4 4.2-5.2 Min 25.4 Dimensions in mm Absolute Maximum Ratings and Characteristics Rating at 25 OC ambient temperature unless otherwise specified. Single phase, half wave, 60Hz,.

📥 Download Datasheet

Datasheet preview – BY133G

Datasheet Details

Part number BY133G
Manufacturer SEMTECH
File Size 231.51 KB
Description GLASS PASSIVATED JUNCTION RECTIFIER
Datasheet download datasheet BY133G Datasheet

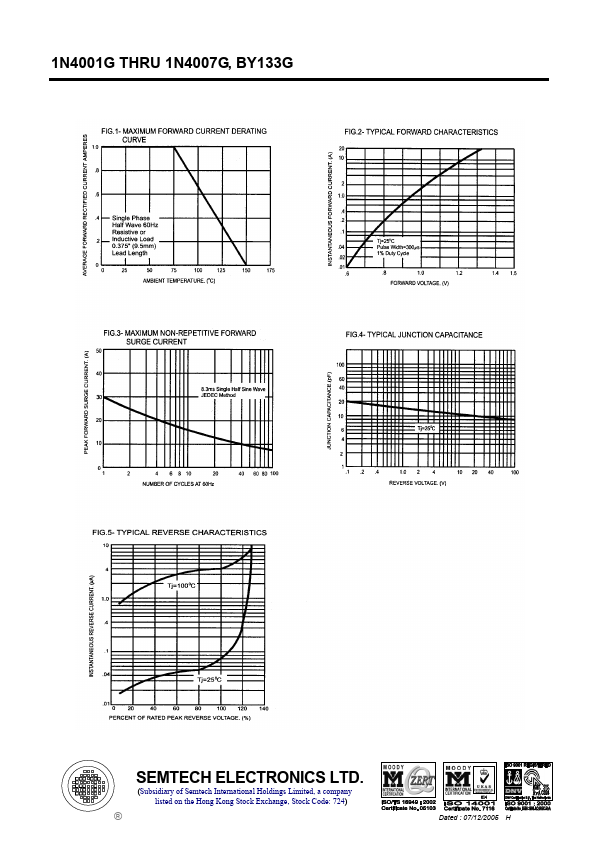

Additional preview pages of the BY133G datasheet.

📁 Similar Datasheet

  • BY133G - GLASS PASSIVATED JUNCTION RECTIFIER (GOOD-ARK Electronics)
  • BY133G - GLASS PASSIVATED JUNCTION BY133G SILICON RECTIFIERS (EIC)
  • BY133G - GLASS PASSIVATED SILICON RECTIFIER (STAR SEA)
  • BY133G - General Purpose Rectifiers (UPM)
  • BY133G - 1.0 Amp Glass Passivated Rectifier (JGD)
  • BY133G - General Purpose Rectifier (Yangzhou Yangjie)
  • BY133GP - Glass Passivated Rectifier (MCC)
  • BY133 - PLASTIC SILICON RECTIFIERS (PAN JIT)
  • BY133 - Sillicon Rectifier (UPM)
  • BY133 - GENERAL PURPOSE RECTIFIER (MEI SEMI)
Other Datasheets by SEMTECH

    Full PDF Text Transcription

    Click to expand full text

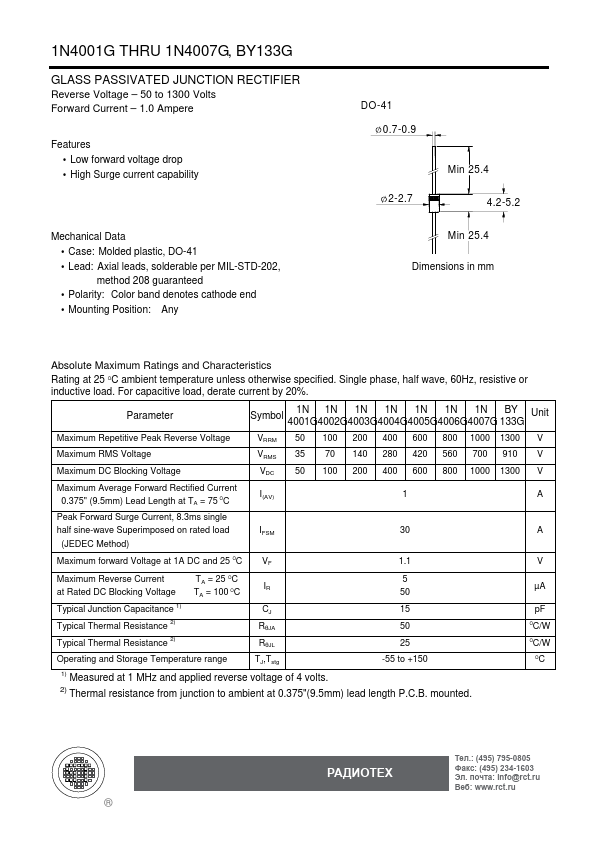

    1N4001G THRU 1N4007G, BY133G GLASS PASSIVATED JUNCTION RECTIFIER Reverse Voltage – 50 to 1300 Volts Forward Current – 1.0 Ampere Features • Low forward voltage drop • High Surge current capability Mechanical Data • Case: Molded plastic, DO-41 • Lead: Axial leads, solderable per MIL-STD-202, method 208 guaranteed • Polarity: Color band denotes cathode end • Mounting Position: Any DO-41 0.7-0.9 2-2.7 Min 25.4 4.2-5.2 Min 25.4 Dimensions in mm Absolute Maximum Ratings and Characteristics Rating at 25 OC ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
