DB153, DB151 - SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER

Name: DB153
SKU: DB153-1211203

SEMTECH

The DB153 by SEMTECH is a SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	DB153, DB151
Manufacturer	SEMTECH
File Size	332.70 KB
Description	SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER
Datasheet	DB151-SEMTECH.pdf
Note	This datasheet PDF includes multiple part numbers: DB153, DB151. Please refer to the document for exact specifications by model.

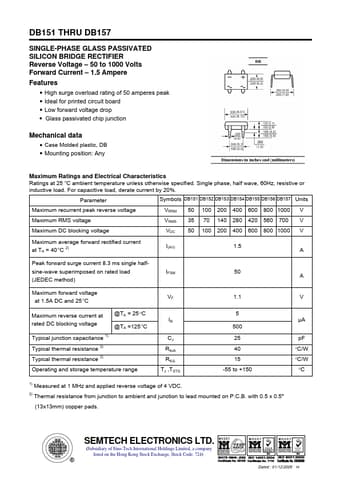

Additional preview pages of the DB153 datasheet.

High surge overload rating of 50 amperes peak.
Ideal for printed circuit board.
Low forward voltage drop.
Glass passivated chip junction Mechanical data.
Case Molded plastic, DB.
Mounting position: Any Maximum Ratings and Electrical Characteristics Ratings at 25 OC ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Parameter Symbols DB151.
