P30FB Silicon Epitaxial Planar Zener Diodes

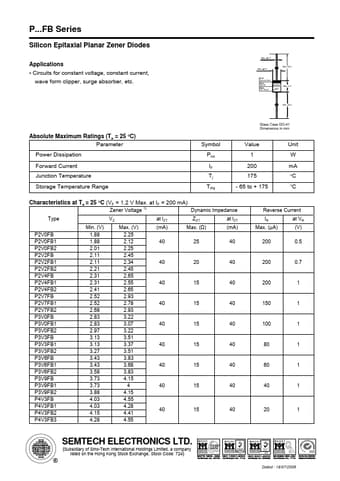

PFB Series Silicon Epitaxial Planar Zener Diodes Applications Circuits for constant voltage, constant current, wave form clipper, surge absorber, etc. Max. 0.7 Max. 2.8 Min. 25.4 Black Cathode Band Black Part No. Black "ST" Brand XXX ST Max. 4.2 Min. 25.4 Absolute Maximum Ratings (Ta = 25 OC) Parameter Power Dissipation Forward Current Junction Temperature Storage Temperature Range Symbol Ptot IF Tj Tstg Glass Case DO-41 Dimensions in mm Value 1 200 175 - 65 to + 175 Unit W.
