P30FC-2C-240VAC, P30FC-1C-12VDC POWER RELAY

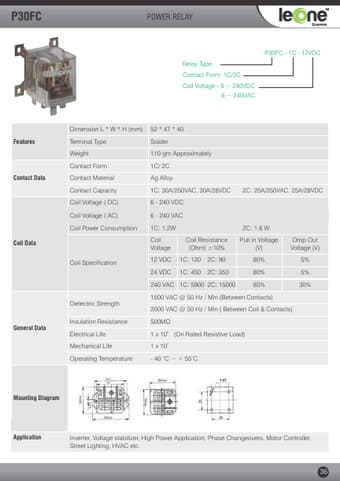

P30FC-2C-240VAC Description

P30FC POWER RELAY P30FC - 1C - 12VDC Relay Type: Contact Form: 1C/2C Coil Voltage:- 6 ~ 240VDC 6 ~ 240VAC Dimension L * W * H (mm) .

P30FC-2C-240VAC Features

* Terminal Type Weight Contact Form Contact Data Contact Material Contact Capacity Coil Voltage ( DC) Coil Voltage ( AC) Coil Power Consumption Coil Data Coil Specification 52
* 47
* 40 Solder 110 gm Approximately 1C/ 2C Ag Alloy 1C: 30A/250VAC, 30A/28VDC 6 - 240 VDC 6 - 240 VAC 1C: 1.2W Coil

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: P30FC-2C-240VAC, P30FC-1C-12VDC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
P30FC-2C-240VAC, P30FC-1C-12VDC
Manufacturer
LEONE
File Size
81.72 KB
Datasheet
P30FC-1C-12VDC-LEONE.pdf
Description
POWER RELAY
Note
This datasheet PDF includes multiple part numbers: P30FC-2C-240VAC, P30FC-1C-12VDC.
Please refer to the document for exact specifications by model.
