P30FC-2C-24VDC - POWER RELAY

Product Overview

LEONE

Part number	P30FC-2C-24VDC
Manufacturer	LEONE
File Size	81.72 KB
Description	POWER RELAY
Datasheet	P30FC-2C-24VDC Datasheet
Note	This datasheet PDF includes multiple part numbers: P30FC-2C-24VDC, P30FC-1C-12VDC. Please refer to the document for exact specifications by model.

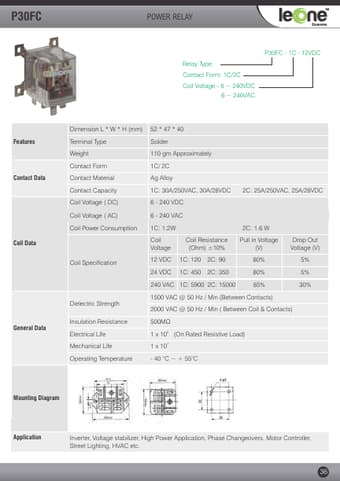

Additional preview pages of the P30FC-2C-24VDC datasheet.

Terminal Type Weight Contact Form Contact Data Contact Material Contact Capacity Coil Voltage ( DC) Coil Voltage ( AC) Coil Power Consumption Coil Data Coil Specification 52.
47.
40 Solder 110 gm Approximately 1C/ 2C Ag Alloy 1C: 30A/250VAC, 30A/28VDC 6 - 240 VDC 6 - 240 VAC 1C: 1.2W Coil Voltage 12 VDC 24 VDC Coil Resistance (Ohm) ±10% 1C: 120 1C: 450 2C: 90 2C: 350 2C: 1.6 W Pull in Voltage (V) 80% 80% 85% Drop Out Voltage (V) 5% 5% 30% 2C: 25A/250VAC, 25A/28VDC 240 VAC 1C: 5900 2C.
