S3KF Datasheet - SEMTECH

S3KF, SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER

S3AF THRU S3MF SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER Reverse Voltage * 50 to 1000 V Forward Current * 3 A SMAF .

S3KF-SEMTECH.pdf

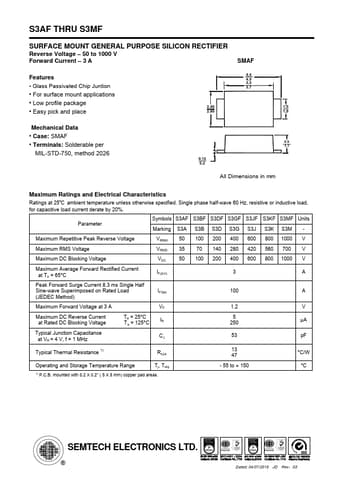

S3KF Datasheet Preview — Preview of S3KF PDF

Datasheet Details

Part number:

S3KF

Manufacturer:

SEMTECH

File Size:

339.11 KB

Description:

SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER

Features

* Glass Passivated Chip Juntion

Applications

* Low profile package
* Easy pick and place 4.4 4.9 3.3 3.7 2.40 2.80 1.3 1.6 Mechanical Data
* Case: SMAF
* Terminals: Solderable per MIL-STD-750, method 2026 0.9 1.1 0.12 0.2 All Dimensions in mm Maximum Ratings and Electrical Characteristics Ratings at 25℃ amb
