ZMM13HSB Silicon Epitaxial Planar Zener Diodes

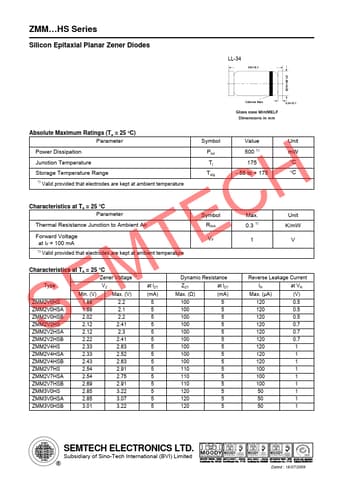

ZMM…HS Series Silicon Epitaxial Planar Zener Diodes LL-34 Absolute Maximum Ratings (Ta = 25 OC) Parameter Symbol Value Unit SEMTECH Power Dissipation Junction Temperature Storage Temperature Range 1) Valid provided that electrodes are kept at ambient temperature Ptot 500 1) mW Tj 175 OC Tstg - 55 to + 175 OC Characteristics at Ta = 25 OC Parameter Thermal Resistance Junction to Ambient Air Forward Voltage at IF = 100 mA 1) Valid provided that electrodes are kept at ambient tempera.
