SGM2526

ProgrammableCurrent Limit Switch

SGM2526 Features

* Wide Input Voltage Range from 4.5V to 22V with Surge up to 30V

* On-Resistance: 23mΩ

* Selectable Input Voltage and Clamping Output Voltage Threshold

* Programmable Current Limit: 5A (MAX)

* Protection Features

* Programmable Soft-Start Time

* Thermal Shutdown Protectio

SGM2526 General Description

The SGM2526 is a compact electronic fuse (eFuse), which can operate from 4.5V to 22V single supply. A 23mΩ low RDSON N-MOSFET is integrated. The two clamping output threshold voltages can be programmed through VCP pin. The clamping voltage protection function can ensure the safe operation of surge e.

SGM2526 Datasheet (673.52 KB)

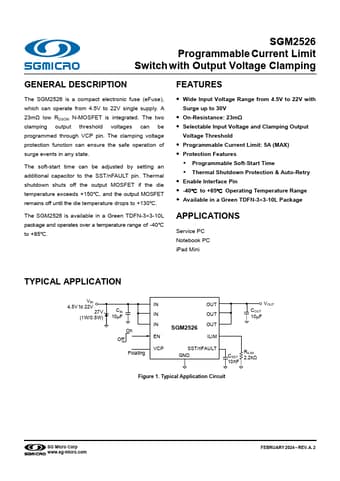

Preview of SGM2526 PDF

Datasheet Details

Part number:

SGM2526

Manufacturer:

SG Micro

File Size:

673.52 KB

Description:

Programmablecurrent limit switch.
