SGM2531A, SGM2531 - Programmable Current Limit Switches

SG Micro

📥 Download Datasheet

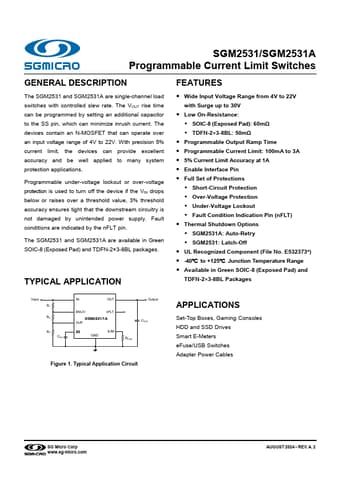

SGM2531A Datasheet Preview — This datasheet PDF includes multiple part numbers: SGM2531A, SGM2531. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SGM2531A, SGM2531
Manufacturer	SG Micro
File Size	1.23 MB
Description	Programmable Current Limit Switches
Datasheet	SGM2531-SGMicro.pdf
Note	This datasheet PDF includes multiple part numbers: SGM2531A, SGM2531. Please refer to the document for exact specifications by model.

SGM2531A Product details

Description

The SGM2531 and SGM2531A are single-channel load switches with controlled slew rate.

Features

Wide Input Voltage Range from 4V to 22V with Surge up to 30V.
Low On-Resistance:.
SOIC-8 (Exposed Pad): 60mΩ.
TDFN-2×3-8BL: 50mΩ.
Programmable Output Ramp Time.
Programmable Current Limit: 100mA to 3A.
5% Current Limit Accuracy at 1A.
Enable Interface Pin.
Full Set of Protections.
Short-Circuit Protection.
Over-Voltage Protection.
Under-Voltage Lockout.
Fault Condition Indication Pin (nFLT).
Thermal Shutdown Options.
SGM.
