SGM2534

Simple 5V/12V Load Switches

SGM2534 Features

* 5V Electronic Fuse (eFuse): SGM2533A/B 12V Electronic Fuse (eFuse): SGM2534A/B

* RDSON Protection Switch: 26mΩ (TYP)

* Fixed Over-Voltage Clamp:

* 6.1V Clamp: SGM2533A/B

* 15V Clamp: SGM2534A/B

* Programmable Current Limit: 2A to 5A (±15% Accuracy)

* Under-Voltage Locko

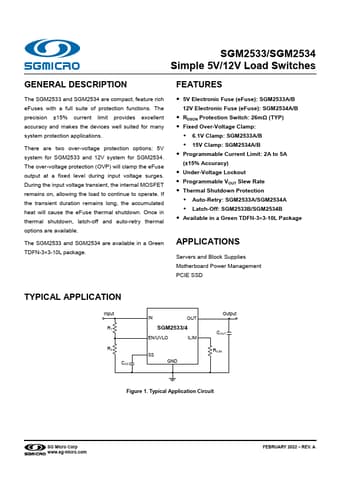

SGM2534 Datasheet (1.47 MB)

Preview of SGM2534 PDF

Datasheet Details

Part number:

SGM2534

Manufacturer:

SG Micro

File Size:

1.47 MB

Description:

Simple 5v/12v load switches.
