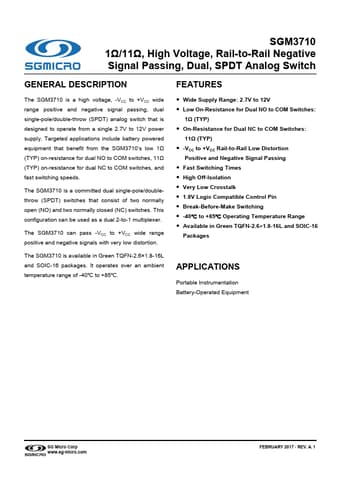

SGM3710 Datasheet, Switch, SG Micro

SGM3710 Features

• Switch
• Wide Supply Range: 2.7V to 12V
• Low On-Resistance for Dual NO to COM Switches: 1Ω (TYP)
• On-Resistance for Dual NC to COM Switches: 11Ω (TYP)
• -VCC

PDF File Details

Part number:

SGM3710

Manufacturer:

SG Micro

File Size:

2.48MB

Download:

📄 Datasheet

Description:

Spdt analog switch. The SGM3710 is a high voltage, -VCC to +VCC wide range positive and negative signal passing, dual single-pole/double-throw (SPDT) ana

SGM3710 Application

• Applications include battery powered equipment that benefit from the SGM3710’s low 1Ω (TYP) on-resistance for dual NO to COM switches, 11Ω (TYP) on-
