SGM3719 - SPDT Negative Signal Handling Analog Switch

SG Micro

📥 Download Datasheet

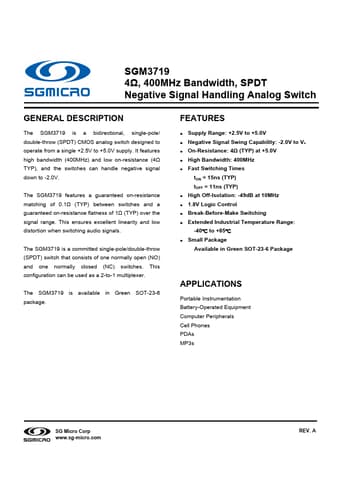

SGM3719 Datasheet Preview — Preview of SGM3719 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SGM3719
Manufacturer: SG Micro
File Size: 340.73 KB
Datasheet: SGM3719-SGMicro.pdf
Description: SPDT Negative Signal Handling Analog Switch

SGM3719 Product details

Description

The SGM3719 is a bidirectional, single-pole/ double-throw (SPDT) CMOS analog switch designed to operate from a single +2.5V to +5.0V supply.

Features

high bandwidth (400MHz) and low on-resistance (4Ω TYP), and the switches can handle negative signal down to -2.0V. The SGM3719 features a guaranteed on-resistance matching of 0.1Ω (TYP) between switches and a guaranteed on-resistance flatness of 1Ω (TYP) over the signal range. This ensures excellent linearity and low distortion when switching audio signals. The SGM3719 is a committed single-pole/double-throw (SPDT) switch that consists of one normally open (NO) and one normally closed (NC) switc.
