SGM3717 - SPDT Negative Signal Handling Analog Switch

SG Micro

📥 Download Datasheet

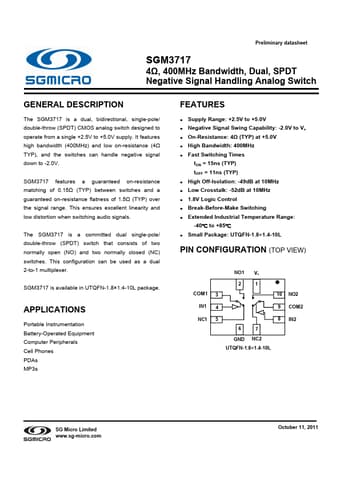

SGM3717 Datasheet Preview — Preview of SGM3717 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SGM3717
Manufacturer: SG Micro
File Size: 421.16 KB
Datasheet: SGM3717-SGMicro.pdf
Description: SPDT Negative Signal Handling Analog Switch

SGM3717 Product details

Description

The SGM3717 is a dual, bidirectional, single-pole/ double-throw (SPDT) CMOS analog switch designed to operate from a single +2.5V to +5.0V supply.

Features

high bandwidth (400MHz) and low on-resistance (4Ω TYP), and the switches can handle negative signal down to -2.0V. SGM3717 features a guaranteed on-resistance matching of 0.15Ω (TYP) between switches and a guaranteed on-resistance flatness of 1.5Ω (TYP) over the signal range. This ensures excellent linearity and low distortion when switching audio signals. The SGM3717 is a committed dual single-pole/ double-throw (SPDT) switch that consists of two normally open (NO) and two normally closed (NC).
