SGM3785S Datasheet - SG Micro

SGM3785S 1.5A Flash LED Driver

The SGM3785S is a highly integrated Boost DC/DC converter with 2MHz fixed frequency. High switching frequency makes it easy to use small components and optimized for portable photoflash. The SGM3785S is ideal for high power flash LEDs which are suitable for mobile phone camera modules and digital st.

SGM3785S Features

* such as over-voltage protection, LED open or short protection and thermal shutdown. The SGM3785S is available in a Green TDFN-3×2-14L package. It operates over an ambient temperature range of -40℃ to +85℃. FEATURES

* Input Voltage Range: 3V to 5V

* Up to Total 1.5A LED Current

* Up to 9

SGM3785S Datasheet (1.05 MB)

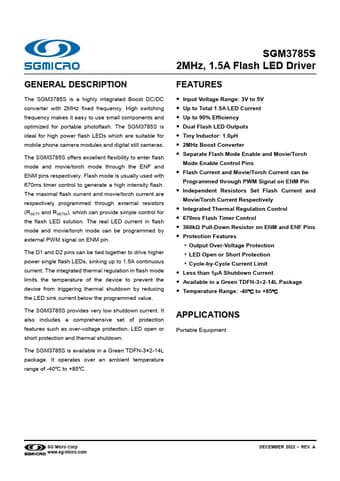

Preview of SGM3785S PDF
SGM3785S Datasheet Preview Page 2 SGM3785S Datasheet Preview Page 3

Datasheet Details

Part number:

SGM3785S

Manufacturer:

SG Micro

File Size:

1.05 MB

Description:

1.5a flash led driver.
