SGM8272

High Voltage Rail-to-Rail Output Operational Amplifiers

SGM8272 Features

* Rail-to-Rail Output

* Wide Input Common Mode Voltage Range

* Low Offset Voltage: 3mV (MAX)

* Low Input Bias Current

* Low Input Offset Current

* Low Quiescent Current: 150µA/Amplifier

* Output Short-Circuit Protection

* High Input Imp

SGM8272 General Description

The SGM8271 (single), SGM8272 (dual) and SGM8274 (quad) are high voltage operational amplifiers, which can operate from 4.5V to 36V single supply or from ±2.25V to ±18V dual power supplies. They provide a wide input common mode voltage range and rail-to-rail output voltage swing. The SGM8271/2/4 pro.

SGM8272 Datasheet (773.91 KB)

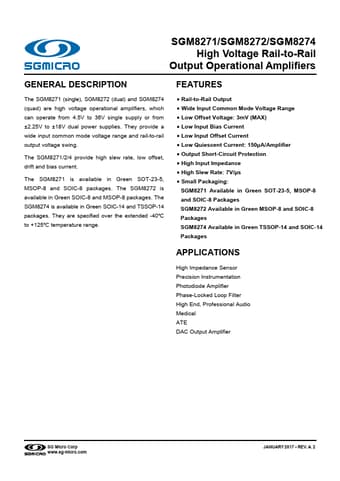

Preview of SGM8272 PDF

Datasheet Details

Part number:

SGM8272

Manufacturer:

SG Micro

File Size:

773.91 KB

Description:

High voltage rail-to-rail output operational amplifiers.
