SGM8273-1 - Rail-to-Rail I/O Operational Amplifiers

Product Overview

SG Micro

Datasheet Details

Part number	SGM8273-1
Manufacturer	SG Micro
File Size	807.02 KB
Description	Rail-to-Rail I/O Operational Amplifiers
Datasheet	SGM8273-1 Datasheet

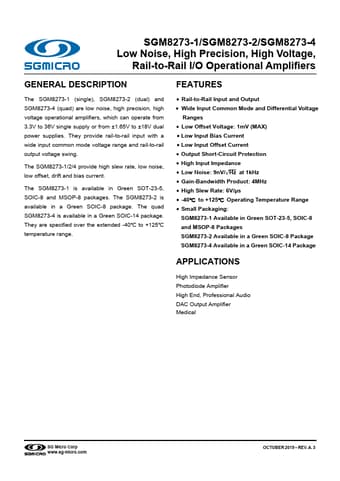

Additional preview pages of the SGM8273-1 datasheet.

Product details

Description

The SGM8273-1 (single), SGM8273-2 (dual) and SGM8273-4 (quad) are low noise, high precision, high voltage operational amplifiers, which can operate from 3.3V to 36V single supply or from ±1.65V to ±18V dual power supplies.

Features

Rail-to-Rail Input and Output.
Wide Input Common Mode and Differential Voltage Ranges.
Low Offset Voltage: 1mV (MAX).
Low Input Bias Current.
Low Input Offset Current.
Output Short-Circuit Protection.
High Input Impedance.
Low Noise: 9nV/√Hz at 1kHz.
Gain-Bandwidth Product: 4MHz.
High Slew Rate: 6V/µs.
-40℃ to +125℃ Operating Temperature Range.
Small Packaging: SGM8273-1 Available in Gree.
