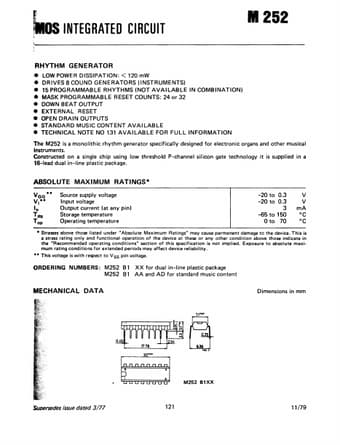

M252 RHYTHM GENERATOR

k.os INTEGRATED CIRCUIT M252 RHYTHM GENERATOR ,. LOW POWER DISSIPATION: < 120 mW DRIVES 8 COUND GENERATORS (INSTRUMENTS) 15 PROGRAMMABLE RHYTHMS (NOT AVAILABLE IN COMBINATION) MASK PROGRAMMABLE RESET COUNTS: 24 or 32 DOWN BEAT OUTPUT EXTERNAL RESET OPEN DRAIN OUTPUTS STANDARD MUSIC CONTENT AVAILABLE TECHNICAL NOTE NO 131 AVAILABLE FOR FULL INFORMATION The M252 is a monolithic rhythm generator specifically .
