M36000 ROM

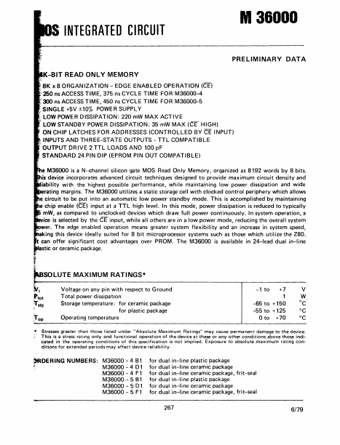

INTEGRATED CIRCUIT M 36000 PRELIMINARY DATA IT READ ONLY MEMORY 8K x 8 ORGANIZATION - EDGE ENABLED OPERATION (CE) 250 ns ACCESS TIME, 375 ns CYCLE TIME FOR M36000-4 300 ns ACCESS TIME, 450 ns CYCLE TIME FOR M36000-5 INGLE +5V ±.10% POWER SUPPLY . LOW POWER DISSIPATION: 220 mW MAX ACTIVE . LOW STANDBY POWER DISSIPATION: 35 mW MAX (CE HIGH) ON CHIP LATCHES FOR ADDRESSES (CONTROLLED BY CE INPUT) INPUTS AND THREE-STATE OUTPUTS - TTL COMPATIBLE OUTPUT DRIVE 2 TTL LOADS AND 100 pF STANDARD 24 P.

M36000 Datasheet (154.91 KB)
