M740 7-STAGE DIVIDER

COS/MOS INTEGRATED CIRCUITS .738/.740 .741/.747 PRELIMINARY DATA 7-STAGE DIVIDER LOW POWER DISSIPATION it LOW OUTPUT IMPEDANCE ON BOTH HIGH AND LOW STATE WIDE SUPPLY VOLTAGE RANGE: 5to 15V HIGH NOISE IMMUNITY INPUTS FULLY PROTECTED The M738/M740/M741/M747 are integrated circuits constructed in COS/MOS technology for use as frequency dividers in electronic organs. All the devices consist of 7 stages of binary division connected to ~ive five divider block.

M740 Features

* a symmetrical impedance buffer (300n typo at Vao= 10Vl. They are available in 14 lead dual in-line plastic package. ABSOLUTE MAXIMUM RATINGS

* Supply voltage Input voltage (at any pin) Total power dissipation (per package) Storage temperature Operating temperature -0.5 to 15 V -0.5 to V DD

M740 Datasheet (144.79 KB)

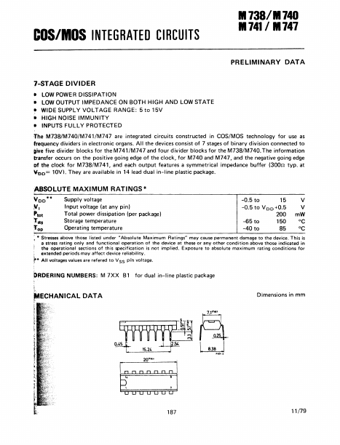

M740 Datasheet Preview — Preview of M740 PDF

Datasheet Details

Part number:

M740

Manufacturer:

SGS

File Size:

144.79 KB

Description:

7-stage divider.
