M74ACT02M QUAD 2-INPUT NOR GATE

The ACT02 is an advanced high-speed CMOS QUAD 2-INPUT NOR GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is ideal for low power applications mantaining high speed operation similar to equivalent Bipolar Schottky TTL. The internal circuit is composed .

® 74ACT02 QUAD 2-INPUT NOR GATE s s s s s s s s s HIGH SPEED: tPD = 5 ns (TYP.) at VCC = 5V LOW POWER DISSIPATION: ICC = 4 µA (MAX.) at TA = 25 oC COMPATIBLE WITH TTL OUTPUTS VIH = 2V (MIN), VIL = 0.8V (MAX) 50Ω TRANSMISSION LINE DRIVING CAPABILITY SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 24 mA (MIN) BALANCED PROPAGATION DELAYS: tPLH ≅ tPHL OPERATING VOLTAGE RANGE: VCC (OPR) = 4.5V to 5.5V PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 02 IMPROVED LATCH-UP IMMUNITY DIP PACKAGE DIP SOP .

M74ACT02M Datasheet (59.65 KB)

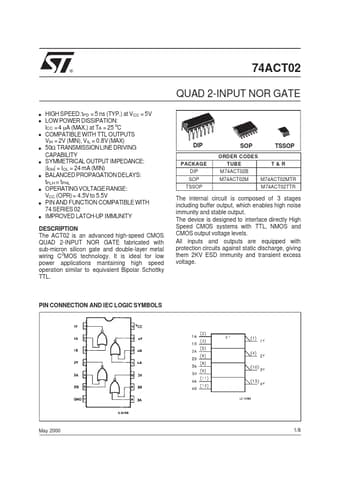

M74ACT02M Datasheet Preview — Preview of M74ACT02M PDF

Datasheet Details

Part number:

M74ACT02M

Manufacturer:

STMicroelectronics ↗

File Size:

59.65 KB

Description:

Quad 2-input nor gate.
