M74AC574M OCTAL D-TYPE FLIP FLOP WITH 3 STATE OUTPUT NON INVERTING

The AC574 is an advanced high-speed CMOS OCTAL D-TYPE FLIP FLOP with 3 STATE OUTPUT NON INVERTING fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. These 8 bit D-Type flip-flops are controlled by a clock input (CK) and an output enable input (OE). On the positiv.

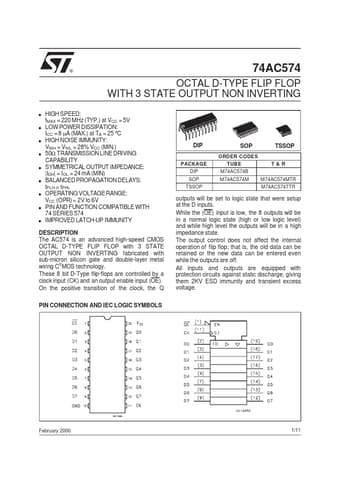

® 74AC574 OCTAL D-TYPE FLIP FLOP WITH 3 STATE OUTPUT NON INVERTING s s s s s s s s s HIGH SPEED: fMAX = 220 MHz (TYP.) at VCC = 5V LOW POWER DISSIPATION: ICC = 8 µA (MAX.) at TA = 25 oC HIGH NOISE IMMUNITY: VNIH = VNIL = 28% VCC (MIN.) 50Ω TRANSMISSION LINE DRIVING CAPABILITY SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 24 mA (MIN) BALANCED PROPAGATION DELAYS: tPLH ≅ tPHL OPERATING VOLTAGE RANGE: VCC (OPR) = 2V to 6V PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 574 IMPROVED LATCH-UP IMMU.
