TDA3410 - DUAL LOW NOISE TAPE PREAMPLIFIER

TDA3410 Description

LINEAR INTEGRATED CIRCUIT DUAL LOW NOISE TAPE PREAMPLIFIER WITH AUTOREVERSE The TDA 3410 is a dual preamplifier with tape autoreverse facility for t.

TDA3410 Features

* are: Very low noise High gain Low distortion Sin!lle supply operation Wide supply range - SVR = 120dB - Large output voltage swing - Tape autoreverse facility - Short circuit protection ABSOLUTE MAXIMUM RATINGS Supply voltage Total power dissipation at Tamb = 60°C Storage and junction temperature

TDA3410 Applications

* requirin!l very low noise performance, as stereo cassette players. Each channel consists of two independent amplifiers. The first has a fixed gain of 30 dB while the second one is an operational amplifier optimized for high quality audio application. The TDA 3410 is a monolithic integrated circuit i

📥 Download Datasheet

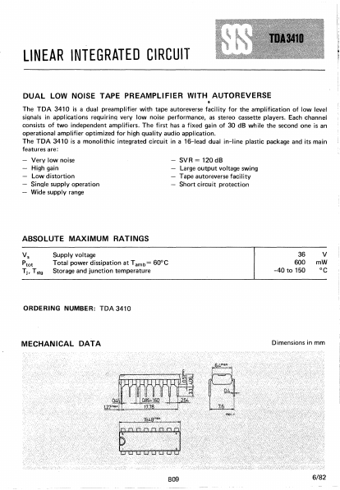

Preview of TDA3410 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TDA3410
Manufacturer
SGS
File Size
510.25 KB
Datasheet
TDA3410-SGS.pdf
Description
DUAL LOW NOISE TAPE PREAMPLIFIER
