TDA7270S - MULTIFUNCTION SYSTEM

TDA7270S Description

LINEAR INTEGRATED CIRCUIT MULTIFUNCTION SYSTEM FOR TAPE PLAYERS The TDA 7270S is a multifunction monolithic integrated circuit in a 16-lead dual in-l.

TDA7270S Applications

* requiring tape playback. It has the following functions: Motor speed regulator Automatic stop Manual stop Pause Cassette ejection Radio - Playback automatic switching. The circuit incorporates also: Thermal protection - Short circuit protection to ground (all the pins) ABSOLUTE MAXIMUM RATINGS Vs

📥 Download Datasheet

Preview of TDA7270S PDF

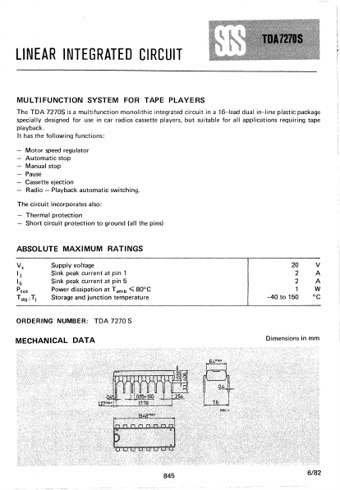

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TDA7270S
Manufacturer
SGS
File Size
726.86 KB
Datasheet
TDA7270S-SGS.pdf
Description
MULTIFUNCTION SYSTEM
