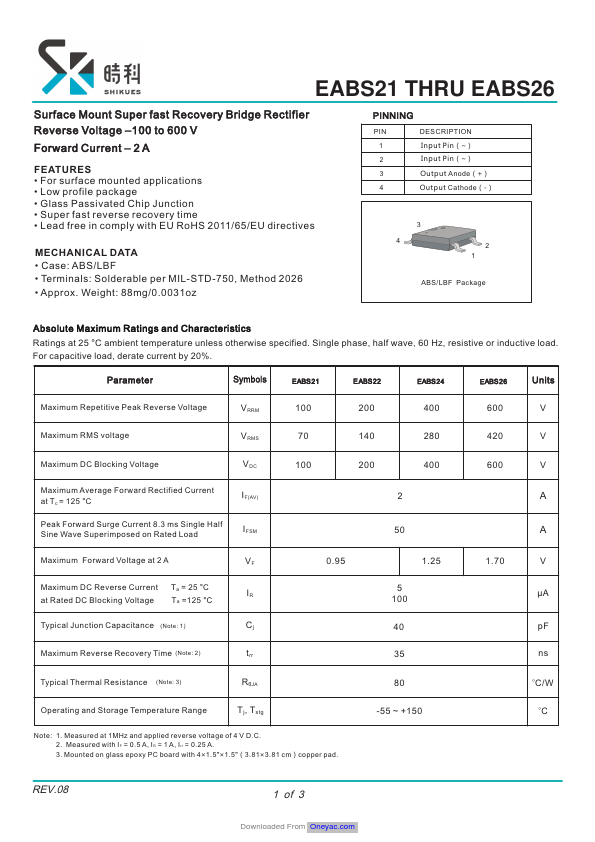

EABS21 Surface Mount Super fast Recovery Bridge Rectifier

EABS21 THRU EABS26 Surface Mount Super fast Recovery Bridge Rectifier Reverse Voltage *100 to 600 V Forward Current * 2 A .
1 Input Pin（~） 2 Input Pin（~） 3 Output Anode（+） 4 Output Cathode（-） 3 4 2 1 ABS/LBF Package Absolute Maximum Ratings and Characteristics R.

EABS21-SHIKUES.pdf

EABS21 Datasheet Preview — Preview of EABS21 PDF

Datasheet Details

Part number:

EABS21

Manufacturer:

SHIKUES

File Size:

235.90 KB

Description:

Surface Mount Super fast Recovery Bridge Rectifier

Applications

* Low profile package
* Glass Passivated Chip Junction
* Super fast reverse recovery time
* Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA
* Case: ABS/LBF
* Terminals: Solderable per MIL-STD-750, Method 2026
* Approx. We
