EABS24, EABS21 Surface Mount Super fast Recovery Bridge Rectifier

Description

EABS21 THRU EABS26 Surface Mount Super fast Recovery Bridge Rectifier Reverse Voltage *100 to 600 V Forward Current * 2 A .
1 Input Pin（~） 2 Input Pin（~） 3 Output Anode（+） 4 Output Cathode（-） 3 4 2 1 ABS/LBF Package Absolute Maximum Ratings and Characteristics R.

📥 Download Datasheet

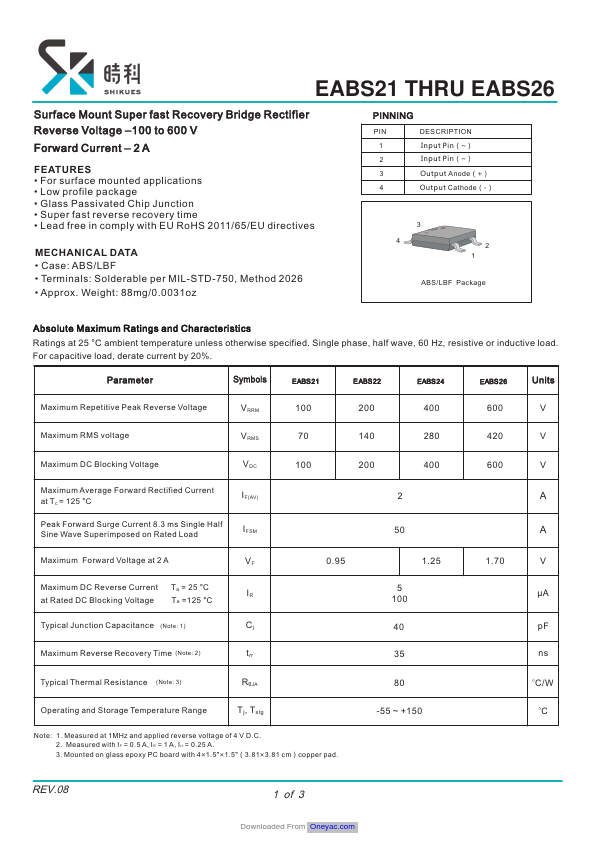

EABS24 Datasheet Preview — This datasheet PDF includes multiple part numbers: EABS24, EABS21. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: EABS24, EABS21
Manufacturer: SHIKUES
File Size: 235.90 KB
Datasheet: EABS21-SHIKUES.pdf
Description: Surface Mount Super fast Recovery Bridge Rectifier
Note: This datasheet PDF includes multiple part numbers: EABS24, EABS21.
Please refer to the document for exact specifications by model.

Applications

* Low profile package
* Glass Passivated Chip Junction
* Super fast reverse recovery time
* Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA
* Case: ABS/LBF
* Terminals: Solderable per MIL-STD-750, Method 2026
* Approx. We
