| Part number | EABS26, EABS21 |
|---|---|
| Manufacturer | SHIKUES |
| File Size | 235.90 KB |
| Description | Surface Mount Super fast Recovery Bridge Rectifier |
| Datasheet |
 EABS21-SHIKUES.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: EABS26, EABS21. Please refer to the document for exact specifications by model. |

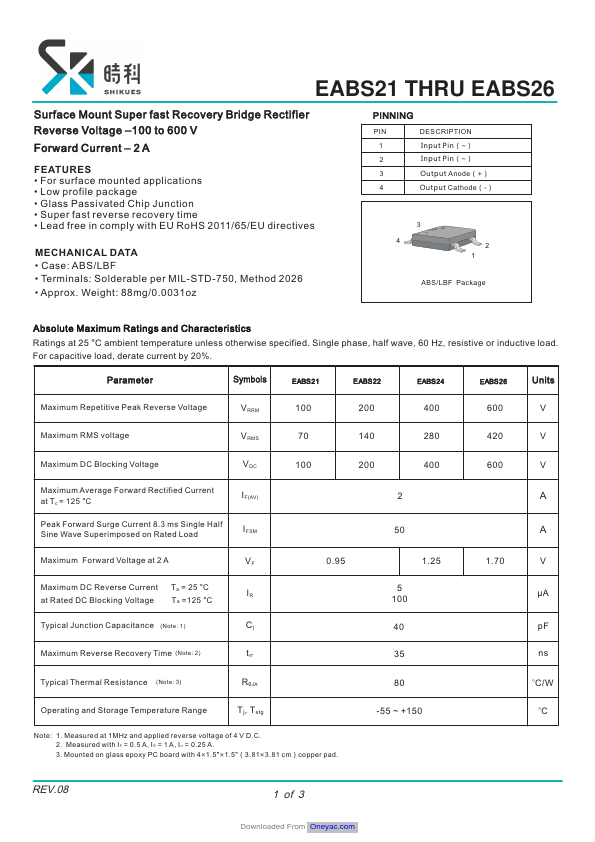

1 Input Pin（~） 2 Input Pin（~） 3 Output Anode（+） 4 Output Cathode（-） 3 4 2 1 ABS/LBF Package Absolute Maximum Ratings and Characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60 Hz, resistive or inductive load.For capacitive load, derate current by 20%.Parameter Symbols E ABS 2 1 E ABS 2 2 EABS 2 4 EABS 2 6 Units Maximum Repetitive Peak Reverse Voltage VRRM 100 200 400 600 V Maximum RMS voltage VRMS 70 140 280
