KP-100A Datasheet - SHINKAWA

KP-100A KM POST SENSOR

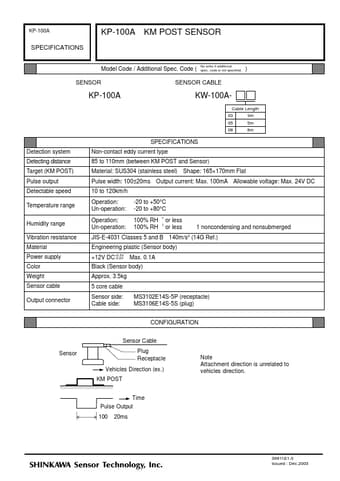

KP-100A KP-100A KM POST SENSOR SPECIFICATIONS Model Code / Additional Spec. Code ( No entry if additional spec. code is not specified. ) SENSOR SENSOR CABLE KP-100A KW-100ACable Length 03 05 08 3m 5m 8m SPECIFICATIONS Detection system Detecting distance Target (KM POST) Pulse output Detectable speed Temperature range Humidity range Vibration resistance Material Power supply Color Weight Sensor cable Output connector Non-contact eddy current type 85 to 110mm (between KM POST and Sensor) M.

KP-100A-SHINKAWA.pdf

KP-100A Datasheet Preview — Preview of KP-100A PDF

Datasheet Details

Part number:

KP-100A

Manufacturer:

SHINKAWA

File Size:

14.24 KB

Description:

Km post sensor.
