S10H12R Datasheet - SI-TECH

N-Channel MOSFET

S10H12R Features

* VDS=100V,ID=120A Rds(on)(typ)=6.5m@Vgs=10V

* 100% Avalanche Tested

* 100% Rg Tested

* Lead-Free (RoHS Compliant) S10H12R/S/RN/RP N-Channel Power MOSFET Applications

* DC Motor Control

* DC-DC Converters

* BMS

* SMPS

* Automotive Environment Internal Circuit a

S10H12R General Description

D D G S Package Package Code G D S TO-220 R Package Marking G S TO-263 S G D S TO-220N RN G D S TO-220P RP Company Part No. and Package Code Assembly Information Lot No. Absolute Maximum Ratings(TC=25℃ unless otherwise noted) Symbol VDSS ID IDM VGS EAS PD TJ TSTG Ver.2.0 Parameter Drain-So.

S10H12R Datasheet (1.77 MB)

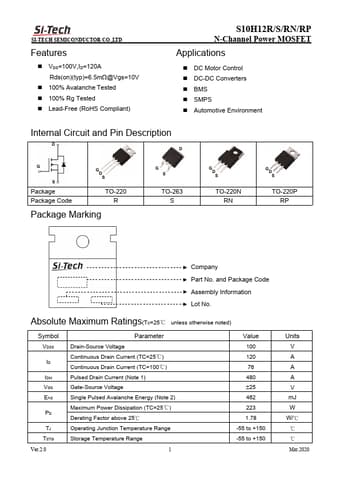

S10H12R Datasheet Preview — Preview of S10H12R PDF

Datasheet Details

Part number:

S10H12R

Manufacturer:

SI-TECH

File Size:

1.77 MB

Description:

N-channel mosfet.
