SB1045 - Power Schottky Rectifier

SIRECT

📥 Download Datasheet

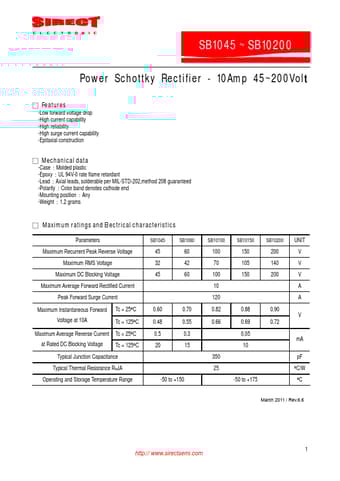

SB1045 Datasheet Preview — Preview of SB1045 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SB1045
Manufacturer	SIRECT
File Size	174.96 KB
Description	Power Schottky Rectifier
Datasheet	SB1045-SIRECT.pdf

SB1045 Product details

Features

s -Low forward voltage drop -High current capability -High reliability -High surge current capability -Epitaxial construction.
Mechanical data -Case：Molded plastic -Epoxy：UL 94V-0 rate flame retardant -Lead：Axial leads, solderable per MIL-STD-202,method 208 guaranteed -Polarity：Color band denotes cathode end -Mounting position：Any -Weight：1.2 grams.
Maximum ratings and Electrical characteristics Parameters Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum.
