SUR1520 - Soft Recovery Behaviour Ultra Fast Recovery Epitaxial Diodes

SIRECTIFIER

SUR1520 Description

SUR1520 thru SUR1560 Soft Recovery Behaviour Ultra Fast Recovery Epitaxial Diodes A C A C(TAB) C A=Anode, C=Cathode, TAB=Cathode SUR1520 SUR156.

SUR1520 Features

* International standard package JEDEC TO-220AC
* Glass passivatd chips
* Very short recovery time
* Extremely low switching losses
* Low IRM-values
* Soft recovery behaviour

SUR1520 Applications

* Antiparallel diode for high frequency switching devices
* Antisaturation diode
* Snubber diode
* Free wheeling diode in converters and motor control circuits
* Rectifiers in switch mode power supplies (SMPS)
* Inductive heating and melting
* Uninterruptible power suppli

📥 Download Datasheet

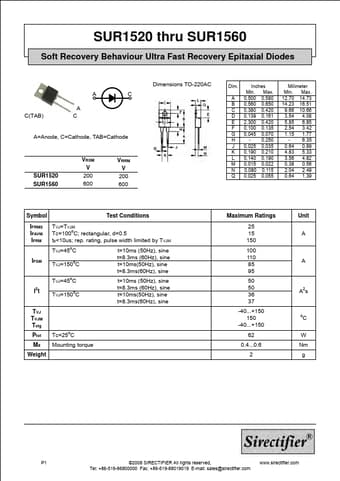

SUR1520 Datasheet Preview — Preview of SUR1520 PDF

Datasheet Details

Part number: SUR1520
Manufacturer: SIRECTIFIER
File Size: 227.94 KB
Datasheet: SUR1520-SIRECTIFIER.pdf
Description: Soft Recovery Behaviour Ultra Fast Recovery Epitaxial Diodes
