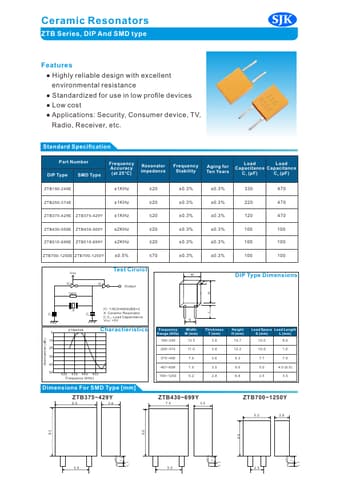

ZTB699Y, ZTB190E Ceramic Resonators

ZTB699Y Description

Ceramic Resonators ZTB Series, DIP And SMD type .

ZTB699Y Features

* Highly reliable design with excellent environmental resistance
* Standardized for use in low profile devices
* Low cost

ZTB699Y Applications

* Security, Consumer device, TV, Radio, Receiver, etc. Standard Specification Part Number DIP Type SMD Type Frequency Accuracy (at 25°C) Resonator Impedance Frequency Stability Load Load Aging for Capacitance Capacitance Ten Years C1 (pF) C2 (pF) ZTB190-249E ±1KHz ≤20 ±0.3% ±0.3% 330

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ZTB699Y, ZTB190E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
ZTB699Y, ZTB190E
Manufacturer
SJK
File Size
87.38 KB
Datasheet
ZTB190E-SJK.pdf
Description
Ceramic Resonators
Note
This datasheet PDF includes multiple part numbers: ZTB699Y, ZTB190E.
Please refer to the document for exact specifications by model.
