SVF2N60N, SVF2N60MG 600V N-CHANNEL MOSFET

SVF2N60N Description

SVF2N60M/MG/MJ/N/NF/F/FG/T/D_Datasheet 2A, 600V N-CHANNEL MOSFET GENERAL .
SVF2N60M/MG/MJ/N/NF/F/FG/T/D is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM str.

SVF2N60N Features

* ∗ 2A,600V,RDS(on)(typ. )=3.7Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF2N60M SVF2N60MG SVF2N60MJ SVF2N60N SVF2N60NF SVF2N60F SVF2N60FG SVF2N60T Package Type TO-251D-3L TO-251D-3L TO-251J-3L TO-126-3L TO-126F-3L

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SVF2N60N, SVF2N60MG. Please refer to the document for exact specifications by model.

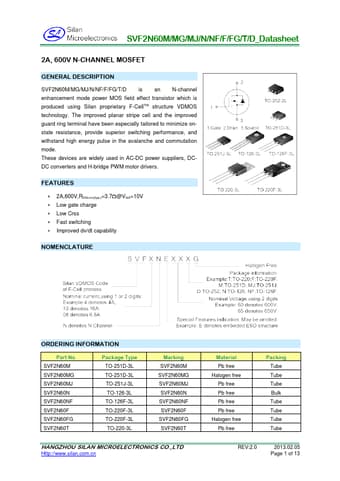

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SVF2N60N, SVF2N60MG
Manufacturer
SL
File Size
516.56 KB
Datasheet
SVF2N60MG-SL.pdf
Description
600V N-CHANNEL MOSFET
Note
This datasheet PDF includes multiple part numbers: SVF2N60N, SVF2N60MG.
Please refer to the document for exact specifications by model.
