1N4004, 1N4001 1.0 SILICON RECTIFIER

1N4004 Description

1N4001-1N4007 Technical Data Data Sheet N0543, Rev.A 1N4001 THRU 1N4007 1.0 SILICON RECTIFIER .

1N4004 Features

* DO-41
* Diffused Junction
* Low Forward Voltage Drop
* High Current Capability
* High Reliability
* High Surge Current Capability
* This is a Pb
* Free Device
* All SMC parts are traceable to the wafer lot
* Additional testing can be offered upon request Ci

1N4004 Applications

* of information, products or circuits described in the datasheets. 4- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co. , Ltd be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4004, 1N4001. Please refer to the document for exact specifications by model.

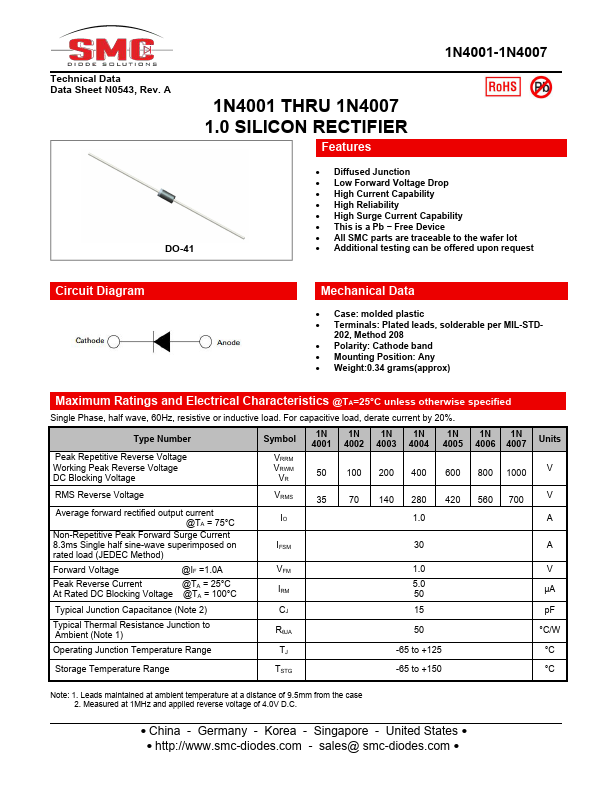

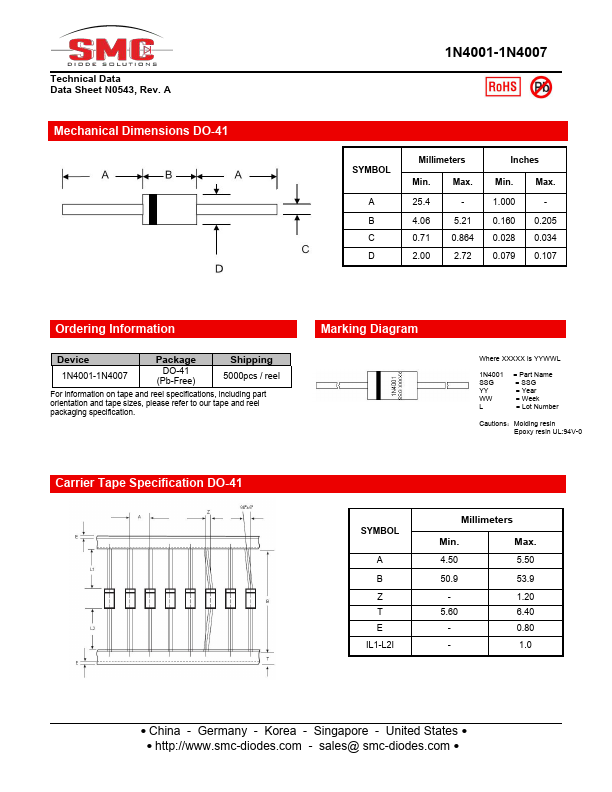

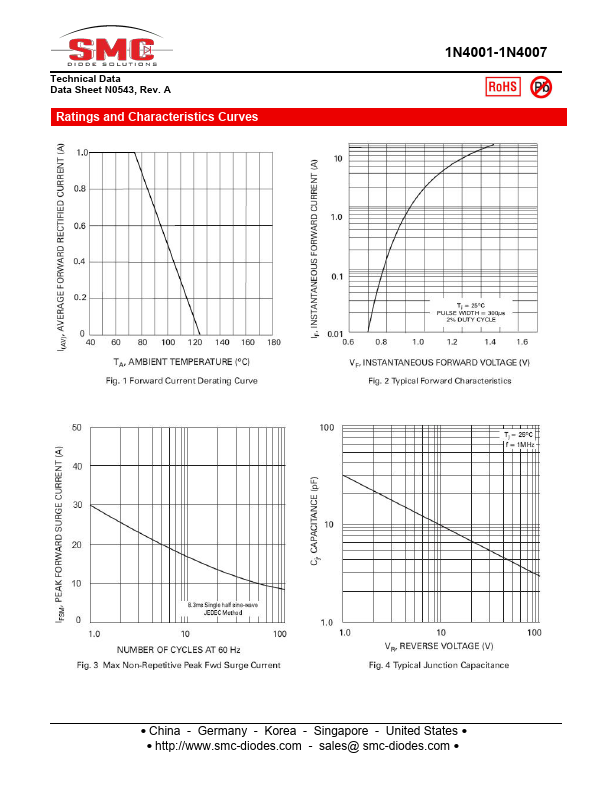

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N4004, 1N4001
Manufacturer
SMC Diode
File Size
307.72 KB
Datasheet
1N4001-SMCDiode.pdf
Description
1.0 SILICON RECTIFIER
Note
This datasheet PDF includes multiple part numbers: 1N4004, 1N4001.
Please refer to the document for exact specifications by model.
