1N4148WS - MOUNT FAST SWITCHING DIODE

Datasheet Summary

Features

High Conductance.
Fast Switching Speed.
Surface Mount Package Ideally Suited for Automatic Insertion.
Small Package.
For General Purpose Switching.

SMC Diode

📥 Download Datasheet

Datasheet Details

Part number	1N4148WS
Manufacturer	SMC Diode
File Size	268.01 KB
Description	MOUNT FAST SWITCHING DIODE
Datasheet	1N4148WS Datasheet

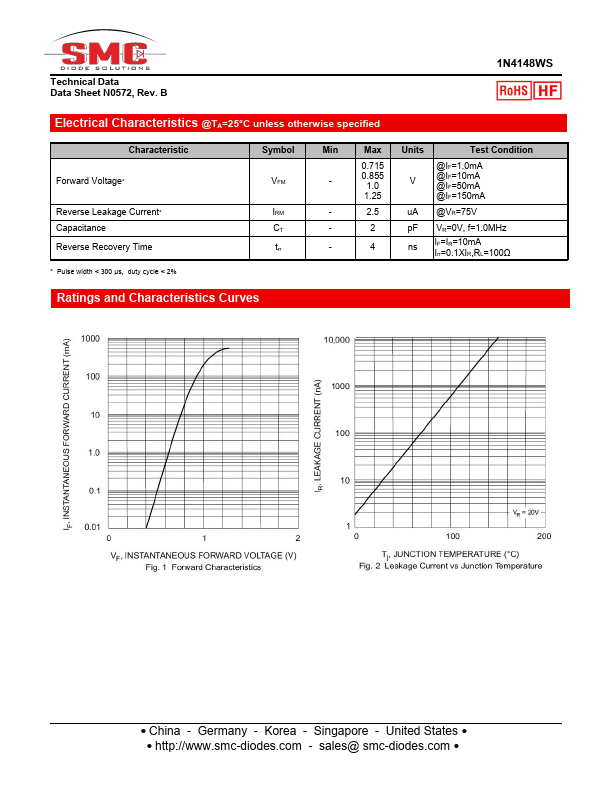

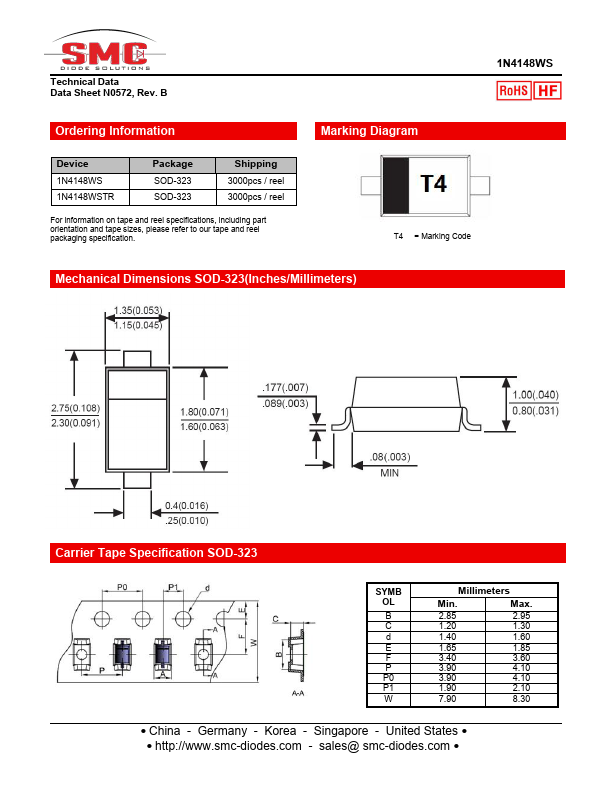

Additional preview pages of the 1N4148WS datasheet.

📁 Similar Datasheet

1N4148WS - SURFACE MOUNT FAST SWITCHING DIODE (Diodes Incorporated)
1N4148WS - Small Signal Diodes (Fairchild Semiconductor)
1N4148WS - Small Signal Fast Switching Diode (Vishay)
1N4148WS - 200mW High Speed SMD Switching Diode (Taiwan Semiconductor)
1N4148WS - SURFACE MOUNT FAST SWITCHING DIODE (LITE-ON)
1N4148WS - Switching Diode (GOOD-ARK)
1N4148WS - FAST SWITCHING DIODE (Rectron)
1N4148WS - Fast Switching Diodes (JILIN SINO)
1N4148WS - Small-Signal Diodes (ON Semiconductor)
1N4148WS-AU - SURFACE MOUNT SWITCHING DIODES (PAN JIT)

Other Datasheets by SMC Diode

1N4148W - FAST SWITCHINGDIODE
1N4148 - FAST SWITCHING DIODE
1N4150 - FAST SWITCHING DIODE
1N4001 - 1.0 SILICON RECTIFIER
1N4001FL - General Purpose Plastic Rectifier
1N4001G - 1.0A GLASS PASSIVATED RECTIFIER
1N4001S - GENERAL PURPOSE SILICON RECTIFIER
1N4002 - 1.0 SILICON RECTIFIER

Full PDF Text Transcription

Click to expand full text

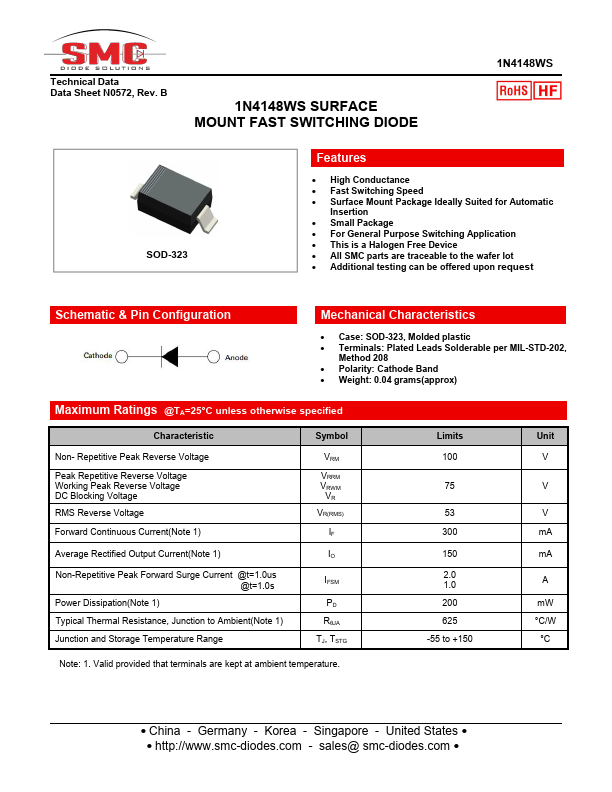

Technical Data Data Sheet N0572, Rev. B 1N4148WS SURFACE MOUNT FAST SWITCHING DIODE 1N4148WS SOD-323 Features  High Conductance  Fast Switching Speed  Surface Mount Package Ideally Suited for Automatic Insertion  Small Package  For General Purpose Switching Application  This is a Halogen Free Device  All SMC parts are traceable to the wafer lot  Additional testing can be offered upon request Schematic & Pin Configuration Mechanical Characteristics  Case: SOD-323, Molded plastic  Terminals: Plated Leads Solderable per MIL-STD-202, Method 208  Polarity: Cathode Band  Weight: 0.
