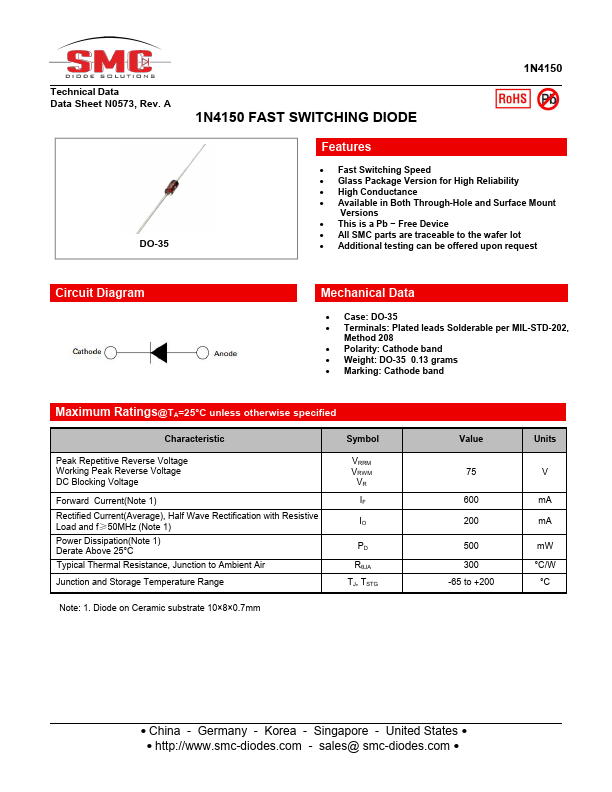

1N4150 - FAST SWITCHING DIODE

Datasheet Summary

Features

  • Fast Switching Speed.
  • Glass Package Version for High Reliability.
  • High Conductance.
  • Available in Both Through-Hole and Surface Mount Versions.
  • This is a Pb.
  • Free Device.
  • All SMC parts are traceable to the wafer lot.
  • Additional testing can be offered upon request Circuit Diagram Mechanical Data.

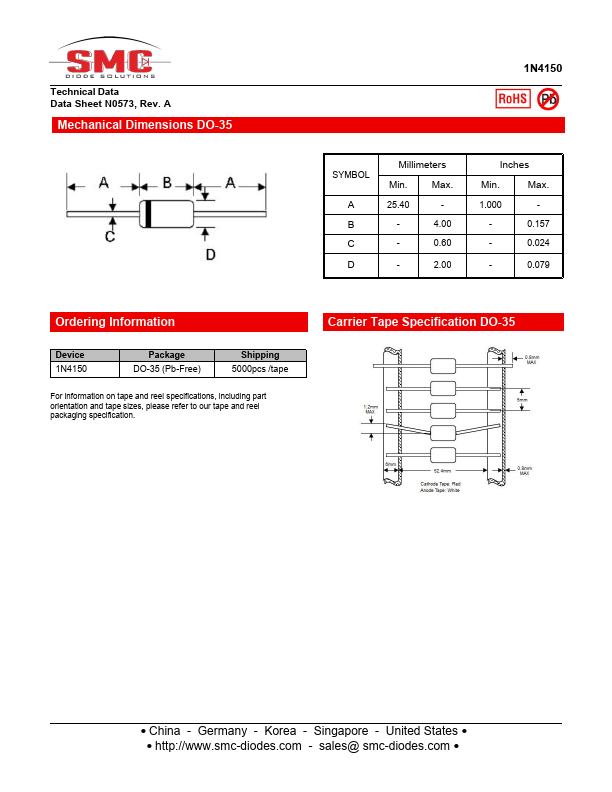

  • Case: DO-35.
  • Terminals: Plated leads Solderable per MIL-STD-202, Method 208.
  • Polarity: Cathode band.
  • Weight: DO-35 0.13 grams.
  • Marki.

📥 Download Datasheet

Datasheet preview – 1N4150

Datasheet Details

Part number 1N4150
Manufacturer SMC Diode
File Size 248.88 KB
Description FAST SWITCHING DIODE
Datasheet download datasheet 1N4150 Datasheet

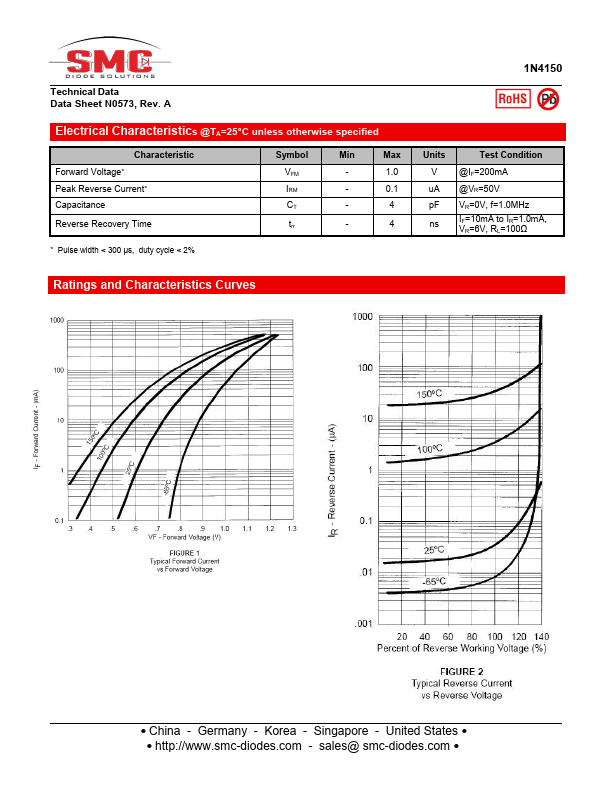

Additional preview pages of the 1N4150 datasheet.

📁 Similar Datasheet

  • 1N4150 - HIGH SPEED SWITCHING DIODES (DC COMPONENTS)
  • 1N4150 - Small Signal Fast Switching Diodes (Vishay)
  • 1N4150 - HIGH SPEED SWITCHING DIODE (Rectron)
  • 1N4150 - FAST SWITCHING SURFACE MOUNT DIODES (PANJIT)
  • 1N4150 - SMALL SIGNAL SWITCHING DIODES (Sunmate)
  • 1N4150 - HIGH SPEED SWITCHING DIODE (EIC)
  • 1N4150-1 - SWITCHING DIODES (Compensated Deuices Incorporated)
  • 1N4150-1 - Silicon Switching Diode (MA-COM)
  • 1N4150-1 - SWITCHING DIODE (Microsemi)
  • 1N4150-1 - Silicon Switching Diodes (Aeroflex)
Other Datasheets by SMC Diode
  • 1N4148 - FAST SWITCHING DIODE
  • 1N4148W - FAST SWITCHINGDIODE
  • 1N4148WS - MOUNT FAST SWITCHING DIODE
  • 1N4001 - 1.0 SILICON RECTIFIER
  • 1N4001FL - General Purpose Plastic Rectifier
  • 1N4001G - 1.0A GLASS PASSIVATED RECTIFIER
  • 1N4001S - GENERAL PURPOSE SILICON RECTIFIER
  • 1N4002 - 1.0 SILICON RECTIFIER

Full PDF Text Transcription

Click to expand full text
Technical Data Data Sheet N0573, Rev. A DO-35 1N4150 1N4150 FAST SWITCHING DIODE Features  Fast Switching Speed  Glass Package Version for High Reliability  High Conductance  Available in Both Through-Hole and Surface Mount Versions  This is a Pb − Free Device  All SMC parts are traceable to the wafer lot  Additional testing can be offered upon request Circuit Diagram Mechanical Data  Case: DO-35  Terminals: Plated leads Solderable per MIL-STD-202, Method 208  Polarity: Cathode band  Weight: DO-35 0.
