* Glass passivated die construction
* Low forward voltage drop
* High current capability
* High surge current capability
* Designed for surface mount application
* Plastic material-UL flammability 94V-0
* This is a Pb
* Free Device
* “-HF” suffix is for Haloge
ABS10U
SMC Diode
349.31 KB
Single phase 1.0amp surface mount glass passivated bridgerectifier.

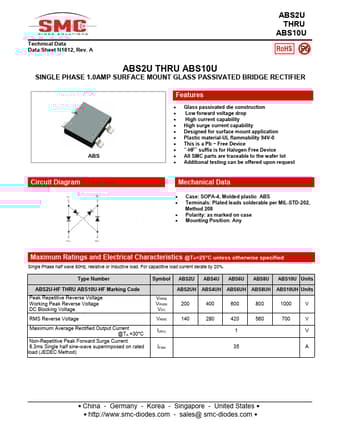

Technical Data Data Sheet N1812, Rev. A
ABS2U THRU
ABS10U
ABS2U THRU ABS10U
SINGLE PHASE 1.0AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
ABS.
