B340A SCHOTTKY RECTIFIER

SMC Diode

B340A Description

Technical Data Data Sheet N0225, Rev.A B340A SCHOTTKY RECTIFIER .

B340A Features

* B340A SMA
* Small foot print, surface moutable
* Low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* Terminals finish: Tin Lead-free plated
* This is a Pb
* Free Device
* All SMC parts are traceab

B340A Applications

* Disk Drives
* Switching power supply
* Redundant power subsystems
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Battery Charging Maximum Ratings(limiting values, TC =25°C unless otherwise specified) Characteristics Peak Repetitive Reverse Voltage

📥 Download Datasheet

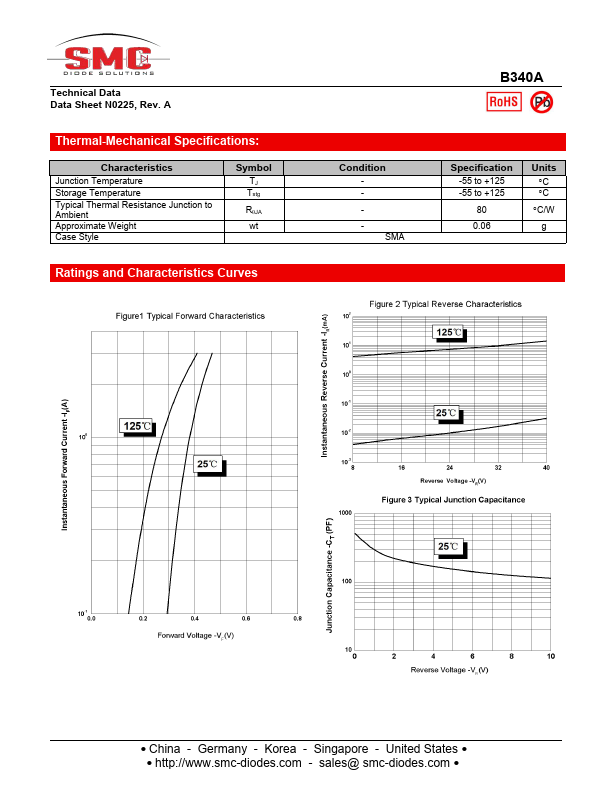

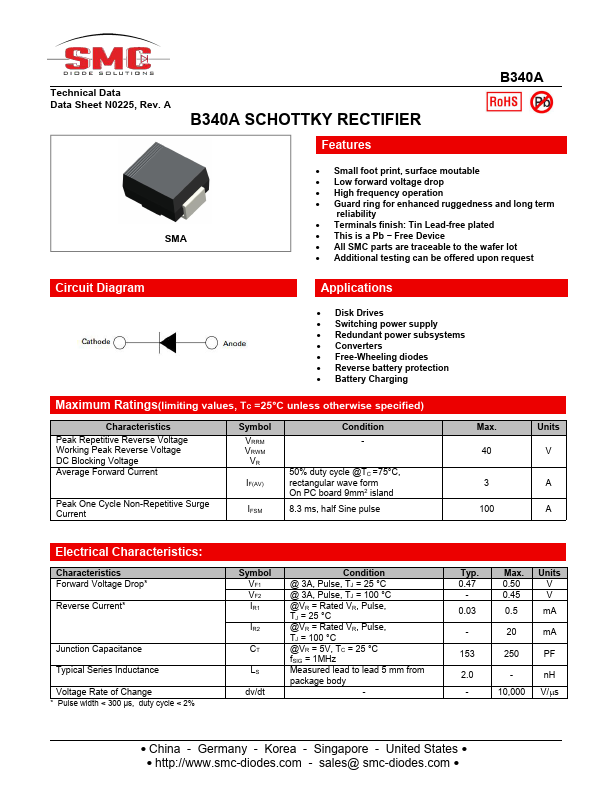

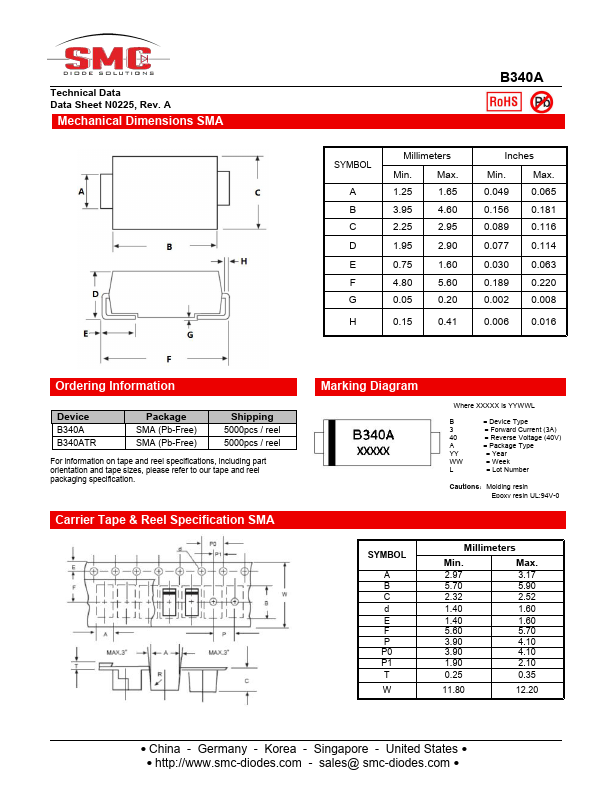

B340A Datasheet Preview — Preview of B340A PDF

Datasheet Details

Part number: B340A
Manufacturer: SMC Diode
File Size: 296.23 KB
Datasheet: B340A-SMCDiode.pdf
Description: SCHOTTKY RECTIFIER
