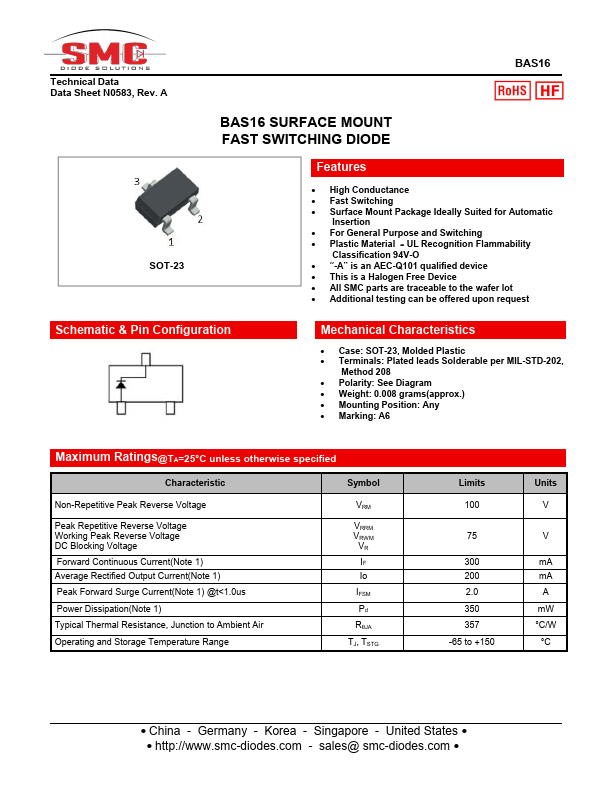

BAS16 - FAST SWITCHING DIODE

SMC Diode

Datasheet Details

High Conductance.
Fast Switching.
Surface Mount Package Ideally Suited for Automatic Insertion.
For General Purpose and Switching.
Plastic Material.
UL Recognition Flammability Classification 94V-O.
“-A” is an AEC-Q101 qualified device.
This is a Halogen Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Schematic & Pin Configuration Mechanical Characteristics.
Case: SOT-23, Molded.
