BY133 - 1.0 SILICON RECTIFIER

Datasheet Summary

Features

BY133 DO-41.
Diffused Junction.
Low Forward Voltage Drop.
High Current Capability.
High Reliability.
High Surge Current Capability.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: molded plastic.
Terminals: Plated leads, solderable per MIL-STD- 202, Method 208.
Polarity: Cathode band.
Mounting Position: Any.

SMC Diode

📥 Download Datasheet

Datasheet Details

Part number	BY133
Manufacturer	SMC Diode
File Size	314.31 KB
Description	1.0 SILICON RECTIFIER
Datasheet	BY133 Datasheet

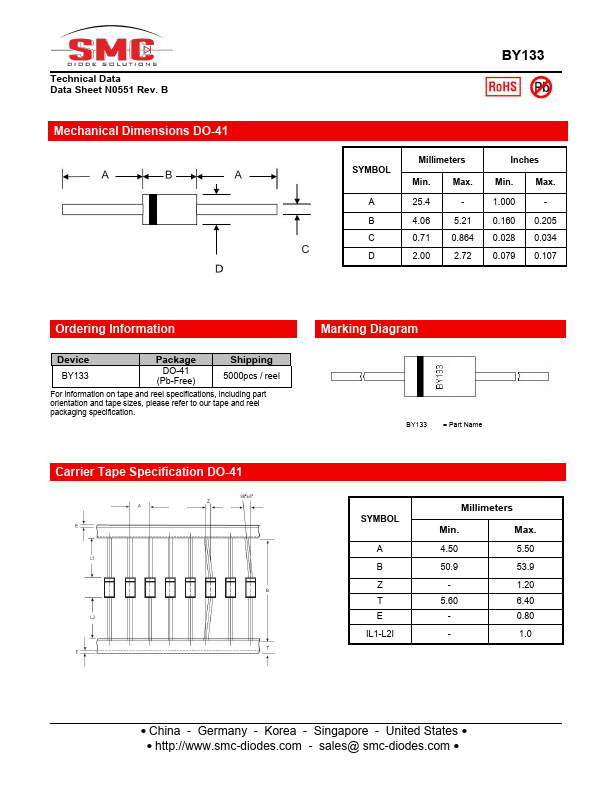

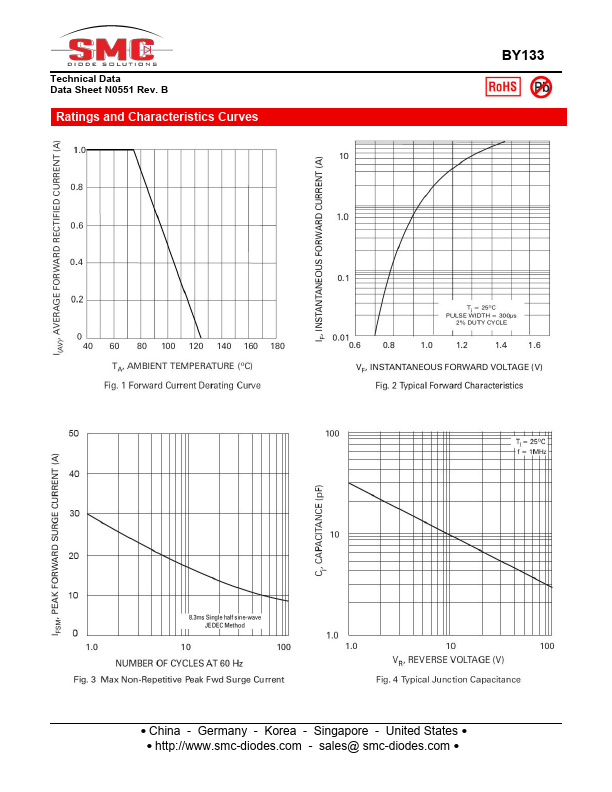

Additional preview pages of the BY133 datasheet.

📁 Similar Datasheet

BY133 - PLASTIC SILICON RECTIFIERS (PAN JIT)
BY133 - Sillicon Rectifier (UPM)
BY133 - GENERAL PURPOSE RECTIFIER (MEI SEMI)
BY133 - 1 Amp Rectifier (MCC)
BY133 - 1.0A Miniature Rectifier (SEP ELECTRONIC)
BY133 - Silicon Rectifiers (Diotec Semiconductor)
BY133 - SILICON RECTIFIER DIODES (EIC)
BY133 - AXIAL LEADED RECTIFIER DIODE (Sunmate)
BY133 - 1.0A HIGH VOLTAGE STANDARD DIODE (WON-TOP)
BY133 - General Purpose Silicon Rectifier (Luguang Electronic)

Other Datasheets by SMC Diode

Full PDF Text Transcription

Click to expand full text

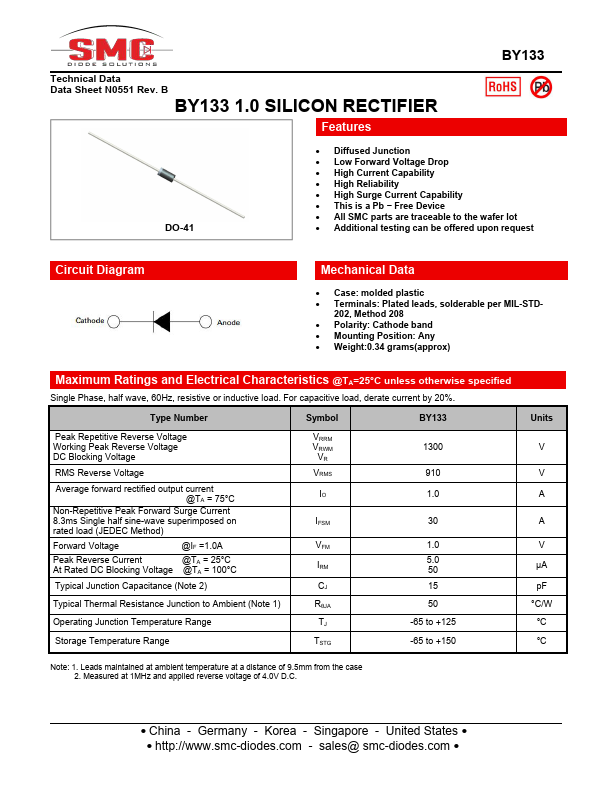

Technical Data Data Sheet N0551 Rev. B BY133 1.0 SILICON RECTIFIER Features BY133 DO-41  Diffused Junction  Low Forward Voltage Drop  High Current Capability  High Reliability  High Surge Current Capability  This is a Pb − Free Device  All SMC parts are traceable to the wafer lot  Additional testing can be offered upon request Circuit Diagram Mechanical Data  Case: molded plastic  Terminals: Plated leads, solderable per MIL-STD- 202, Method 208  Polarity: Cathode band  Mounting Position: Any  Weight:0.34 grams(approx)  Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
