RL207, RL201 - 1.0 SILICON RECTIFIERS

SMC Diode

📥 Download Datasheet

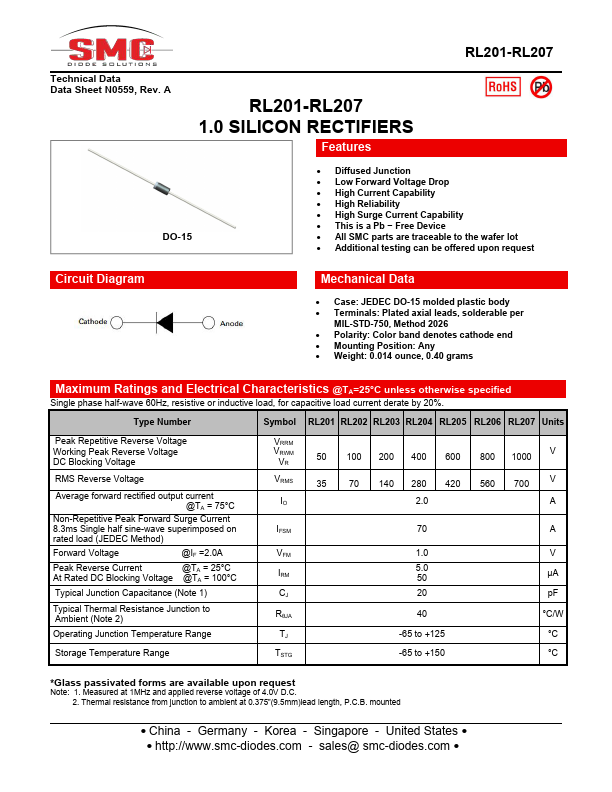

RL207 Datasheet Preview — This datasheet PDF includes multiple part numbers: RL207, RL201. Please refer to the document for exact specifications by model.

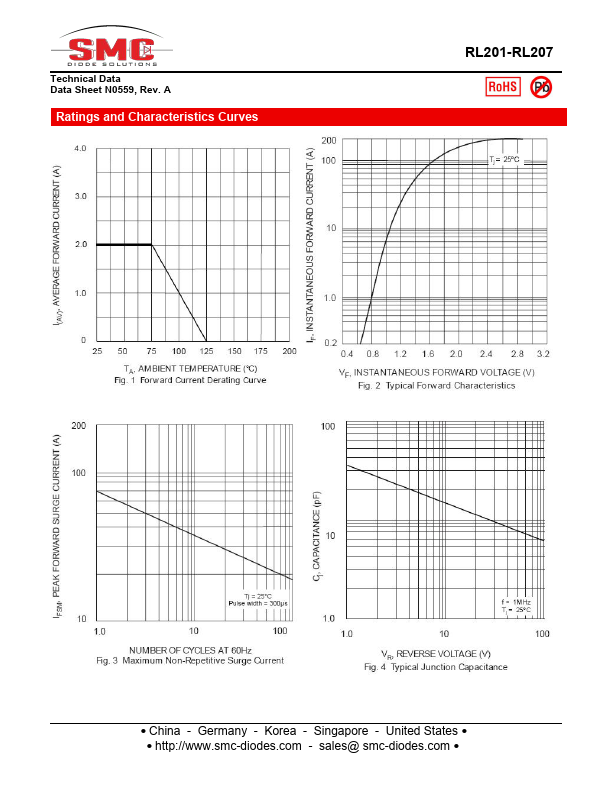

datasheet Preview Page 2

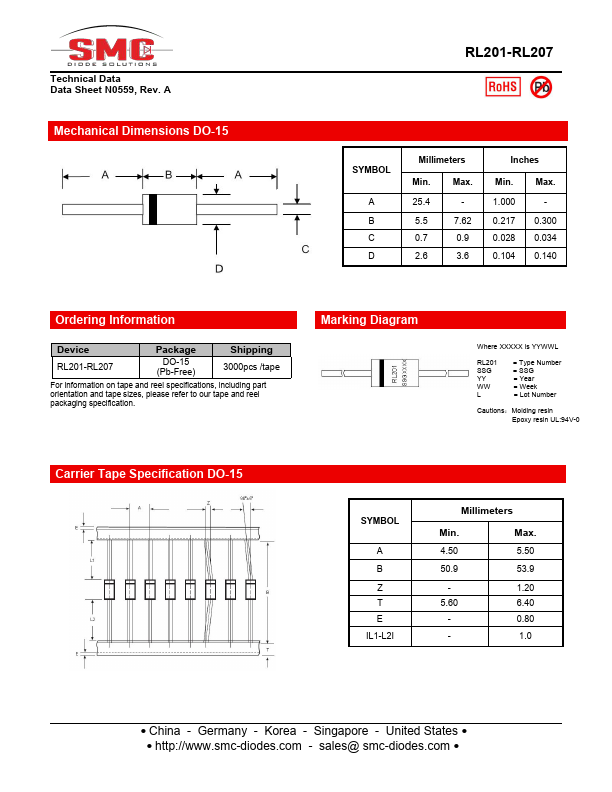

datasheet Preview Page 3

Datasheet Details

Part number	RL207, RL201
Manufacturer	SMC Diode
File Size	317.39 KB
Description	1.0 SILICON RECTIFIERS
Datasheet	RL201-SMCDiode.pdf
Note	This datasheet PDF includes multiple part numbers: RL207, RL201. Please refer to the document for exact specifications by model.

RL207 Product details

Features

DO-15.
Diffused Junction.
Low Forward Voltage Drop.
High Current Capability.
High Reliability.
High Surge Current Capability.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: JEDEC DO-15 molded plastic body.
Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026.
Polarity: Color band denotes cathode end.
