RL201 - 1.0 SILICON RECTIFIERS

SMC Diode

RL201 Description

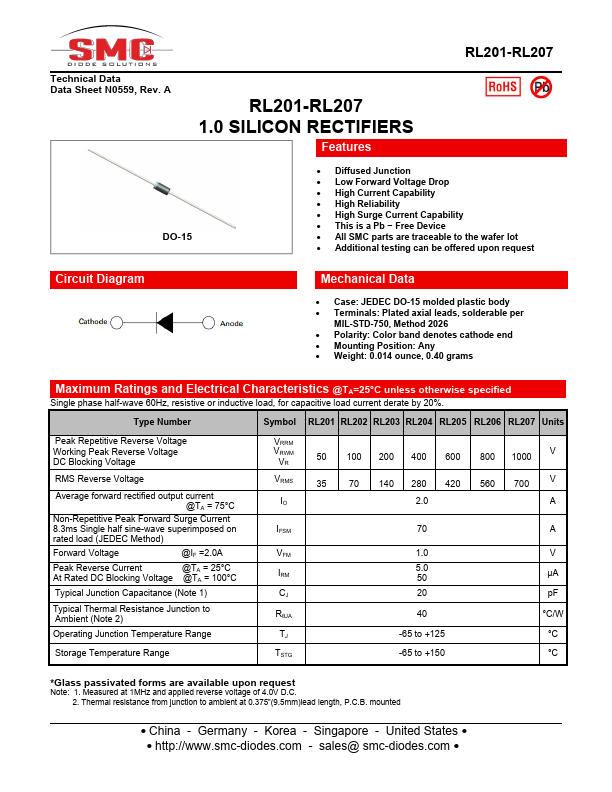

RL201-RL207 Technical Data Data Sheet N0559, Rev.A RL201-RL207 1.0 SILICON RECTIFIERS .

RL201 Features

* DO-15
* Diffused Junction
* Low Forward Voltage Drop
* High Current Capability
* High Reliability
* High Surge Current Capability
* This is a Pb
* Free Device
* All SMC parts are traceable to the wafer lot
* Additional testing can be offered upon request Ci

RL201 Applications

* of information, products or circuits described in the datasheets. 4- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co. , Ltd be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is

📥 Download Datasheet

RL201 Datasheet Preview — Preview of RL201 PDF

Datasheet Details

Part number: RL201
Manufacturer: SMC Diode
File Size: 317.39 KB
Datasheet: RL201-SMCDiode.pdf
Description: 1.0 SILICON RECTIFIERS
